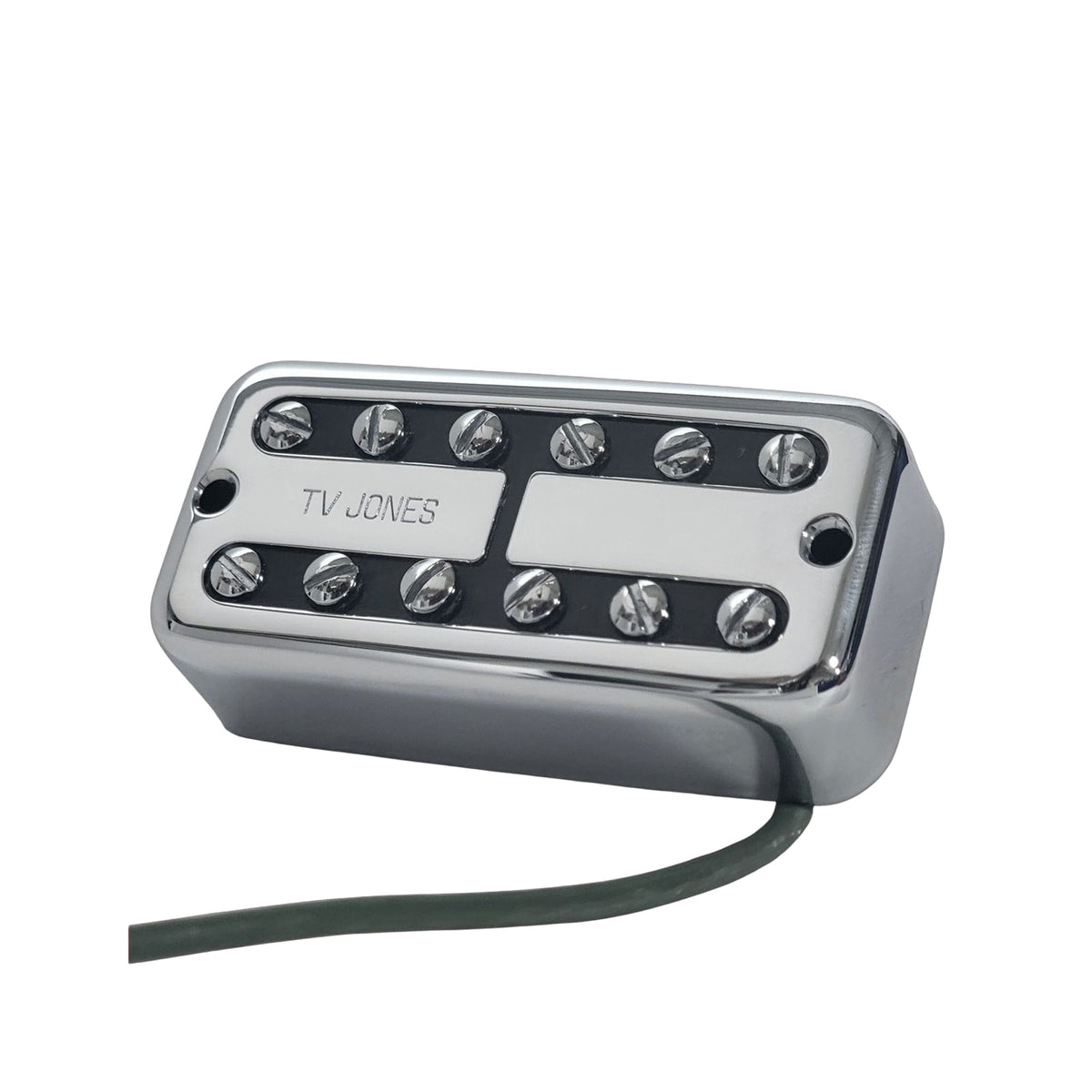

Power'Tron™ Bridge Pickup - Universal Mount™
The Power'Tron was born out of our desire to create a pickup that has the character of a PAF-style humbucker yet retains the essence of a Filter'Tron. Larger bobbins, standard HB sized wire, and more windings create a badder, gnarlier older brother to the TV Classic (and TV Classic Plus).
Tone/Characteristics
Mixing the vintage tone of a golden-age PAF with the rockabilly twang of a late-'50s Filter'Tron. Full body and a clear top end that is naturally dynamic. Digging in reveals a chunky low-end breakup paired with a barky top-end grit that sounds amazing through a tube amp. This is a great choice if you like the overall Filter'Tron sound but want more guts and glory than usually provided by lower output pickups.
Output/Power
DC Resistance is not entirely an indicator of true pickup output, although it can be helpful.
Bridge: DCR - 7.8k / Inductance - 4.75H
Neck: DCR - 5.0k / Inductance - 2.24H

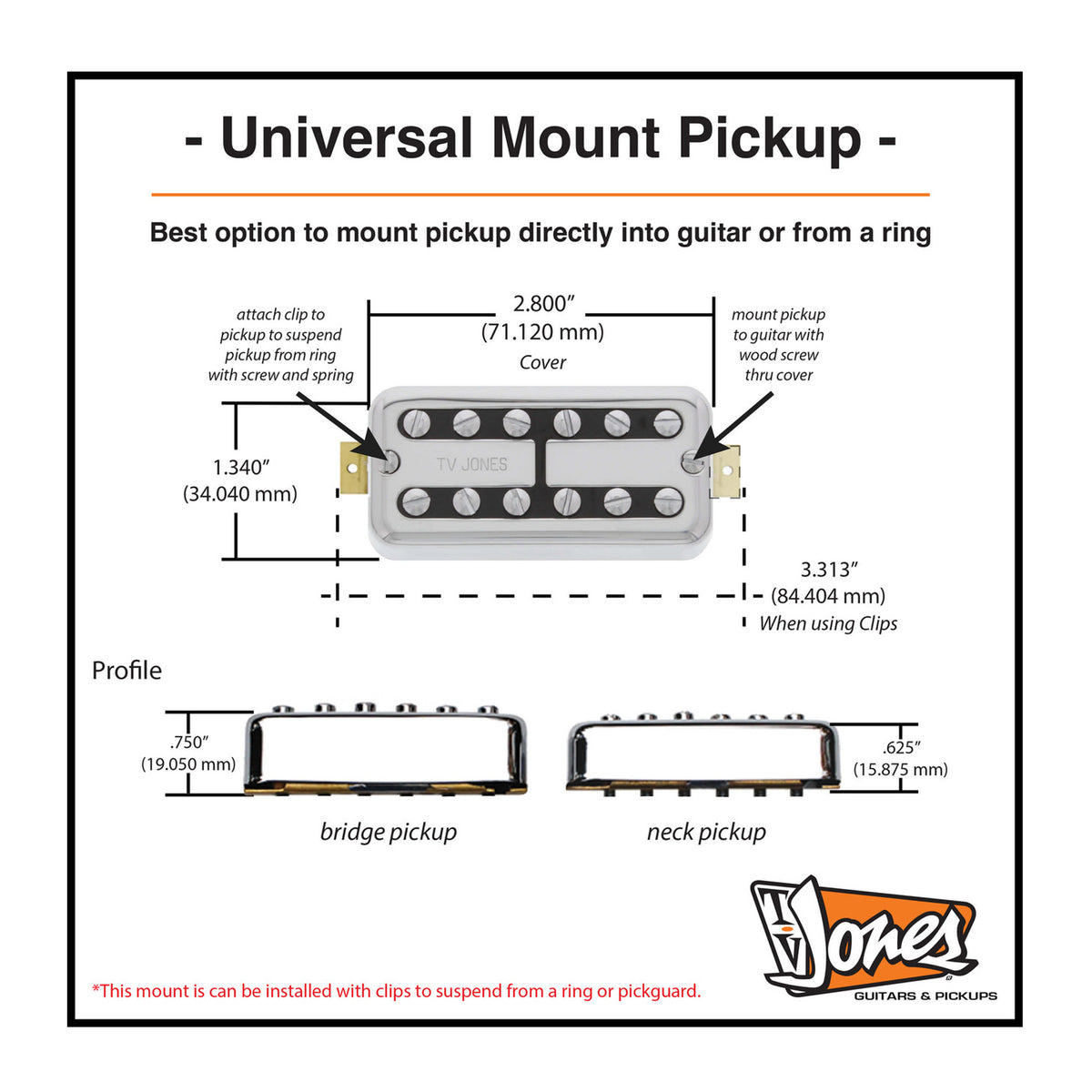

Installation

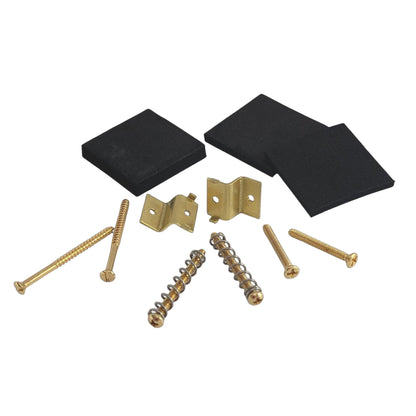

The Universal Mount is a direct drop-in replacement for guitars with standard sized Filter'Trons - with and without "ears" or "clips". This pickup comes standard with two pieces of compression rubber, 2 mounting (wood) screws, and 1 Universal Mount Clip Pack - which includes everything you will need to mount the pickups to a TV Jones ring or pickguard.
The Universal Mount can be installed two different ways:
- As a direct drop-in replacement for guitars with standard sized Filter'Trons – use wood screws and compression rubber
- As a replacement for a humbucker mount pickup – attach clips before installing pickup to ring or pickguard
