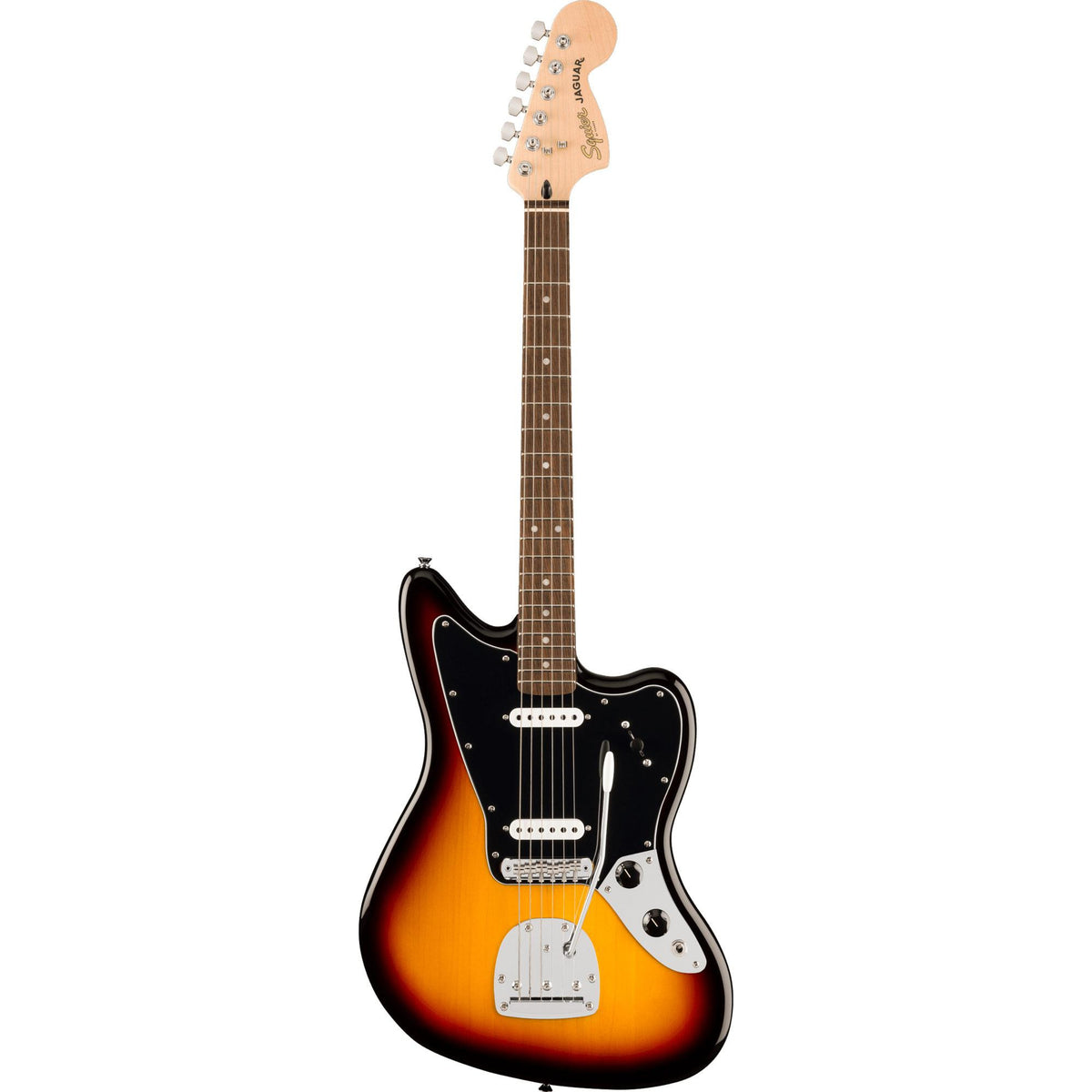

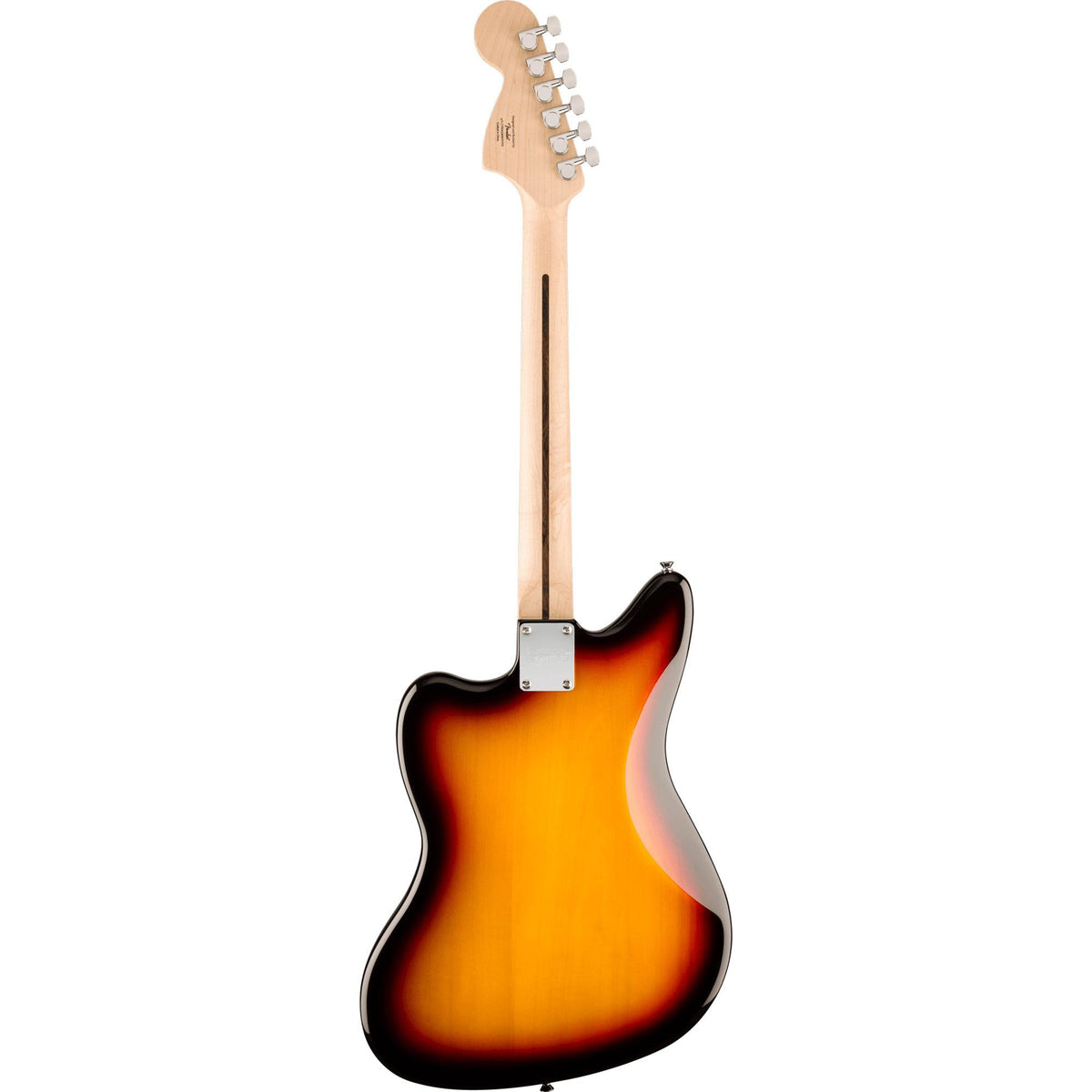

A superb gateway into the time-honored Fender® family, the Squier® Affinity Series® Jaguar® delivers legendary design and quintessential tone for today’s aspiring guitar hero. This model features several player-friendly refinements such as a thin and lightweight body, a slim and comfortable “C”-shaped neck with short 24“ scale length, a vintage-style tremolo and floating bridge for superior tremolo action and sealed die-cast tuning machines with split shafts for smooth, accurate tuning and easy restringing. Loaded with two Squier single-coil pickups with 3-way switching for genre-defying sonic variety, this model is ready to accompany any player at any stage.
Thin and lightweight body
Floating bridge and vintage-style tremolo
Slim and comfortable “C”-shaped neck profile
Two Squier single-coil pickups
Sealed die-cast tuning machines with split shafts
Product Name: Affinity Series Jaguar, Laurel Fingerboard, Black Pickguard - 3-Color Sunburst
Model #: 0378401500
General
SERIES: Affinity Series®
ORIENTATION: Right-Hand
COLOR: 3-Color Sunburst
COUNTRY OF ORIGIN: CN
PLATFORM: Squier Guitars
Neck
NECK MATERIAL: Maple
NECK FINISH: Satin Urethane with Gloss Urethane Headstock Face
NECK SHAPE: "C" Shape
NECK CONSTRUCTION: Bolt-On
FINGERBOARD RADIUS: 9.5" (241 mm)
FINGERBOARD MATERIAL: Indian Laurel
POSITION INLAYS: Pearloid Dot
SIDE DOTS: White
NUMBER OF FRETS: 22
TRUSS ROD: Head Adjust
STRING NUT: Synthetic Bone
NUT WIDTH: 1.65" (41.91mm)
NUT MATERIAL: Synthetic Bone
Body
BODY: Poplar
BODY FINISH: Gloss Polyurethane
BODY SHAPE: Jaguar®
BODY MATERIAL: Poplar
Hardware
BRIDGE: Floating Bridge and Tailpiece
PICKGUARD: 3-Ply Black
PICKUP COVERS: White
CONTROL KNOBS: Black Plastic
SWITCH TIP: White
HARDWARE FINISH: Chrome
TUNING MACHINES: Sealed Die-Cast with Split Shafts
STRING TREES: Dual-Wing
STRINGS: Nickel Plated Steel (.009-.042 Gauges)
TREMOLO ARM: Pop-In
NECK PLATE: 4-Bolt Squier®
STRAP BUTTONS: Standard
Electronics
BRIDGE PICKUP: Ceramic Single-Coil
NECK PICKUP: Ceramic Single-Coil
PICKUP CONFIGURATION: SS
CONTROLS: Master Volume, Master Tone
SWITCHING: 3-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
Measurements
DIMENSIONS: 4.00x14.70x43.90 IN
SHIPPING WEIGHT: 11.00 LB
FRET SIZE: Medium Jumbo
SCALE LENGTH: 24" (610 mm)
SHIPPING LENGTH: 43.90 IN
SHIPPING HEIGHT: 4.00 IN
SHIPPING WIDTH: 14.70 IN
