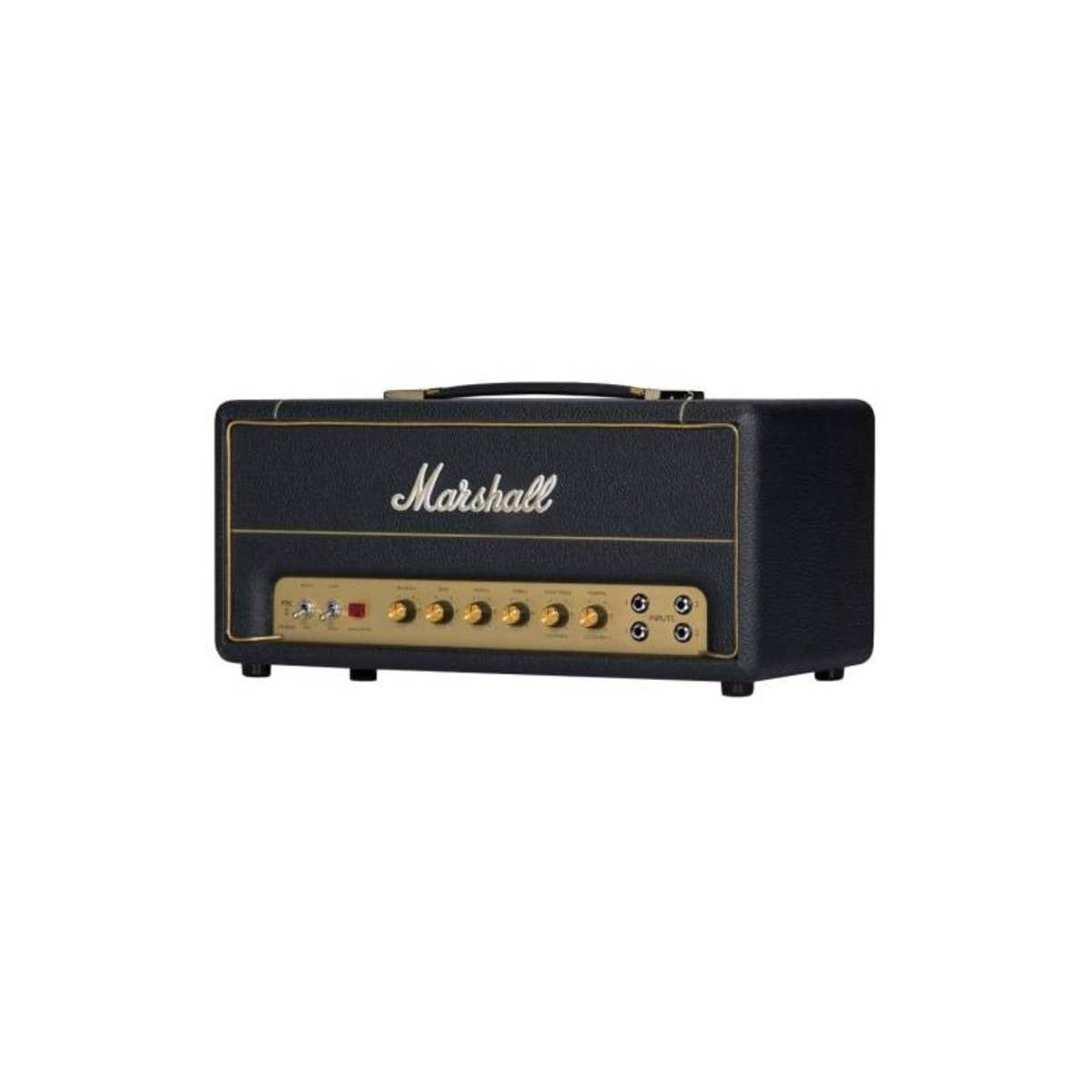

The SV20H brings the classic tone of the 1959SLP straight to your home. Arguably the most famous amp of all time has been perfectly reinvented for today's guitarist. Uniting the original all-valve sound with the choice to switch between 20W and 5W at the touch of a button, all packed into the definitive rock rig.
SPECIFICATIONS
GENERAL
Model: SV20H
Range: Studio
ELECTRONICS
Output wattage: 20W (with power reduction option to 5W)
Outputs: 5 x 1/4 jack sockets, selectable 16Ω / 8Ω / 4Ω load
Inputs: 4 (2 x high, 2 x low) "Lead and Bass"
Controls: Low/High power mode selection switch, presence, bass, middle, treble, high treble/loudness I, normal/loudness II
Effects: None
Effects loop: Yes, series, send/return
VALVES
Preamp valves: 2 x ECC83, 1 x ECC83 (phase splitter)
Power amp valves: 2 x EL34
ACCESSORIES
Cables: Detachable power cable and speaker cable included
DIMENSIONS (INCLUDING FEET AND HANDLE)
Weight: 9.25kg / 20.4 lbs
Width: 500mm / 19.7"
Height: 240mm / 9.4"
Depth: 230mm / 9.1"
