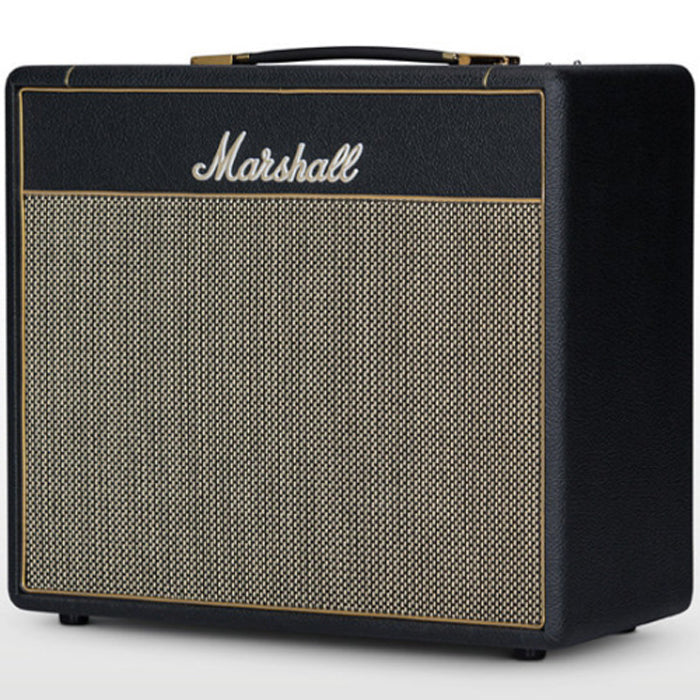

The SV20C combines the raw power of the 1959SLP and authentic voice of classic rock in a new portable style. The amp that first defined rock 'n' roll in the 60s has been revised for the present day, while remaining faithful to the original with its Plexi design and all-valve tone. Still considered a classic by scores of legendary guitarists, the SV20C lets you play like your heroes on stage, in the studio and at home.
ELECTRONICS
Output wattage: 20W (with power reduction option to 5W)
Outputs: 2 x 1/4" jack speaker, selectable 16Ω / 8Ω / 4Ω load
Inputs: 4 (2 x high, 2 x low) "Lead and Bass"
Controls: Low/High power mode selection switch, presence, bass, middle, treble, high treble/loudness I, normal/loudness II
Effects: None
Effects loop: Yes, series, send/return
SPEAKERS
Speaker configuration: 1x10"
Speaker model: Celestion V-type 10 (16Ω, 50W)
Unit impedance: 16Ω
VALVES
Preamp valves: 2 x ECC83, 1 x ECC83 (phase splitter)
Power amp valves: 2 x EL34
ACCESSORIES
Detachable power cable included
DIMENSIONS (INCLUDING FEET AND HANDLE)
Weight: 15.9kg / 35 lbs
Width: 500mm / 19.7"
Height: 460mm / 18.1"
Depth: 245mm / 9.6"
