The all-new Streamliner™ Collection revitalizes the best elements from the past and combines them with exciting new features to deliver exceptional performance, sound, and style at an incredible value.
The G2420 Streamliner Hollow Body Single-Cut with Chromatic II tailpiece is designed for the modern guitarist who yearns for something beyond the norm. A commanding guitar for powerful players, the G2420’s modern sonics, updated electronics and authentically elegant style create the latest iteration of That Great Gretsch® Sound!™
FEATURES:
All-new Broad’Tron™ BT-3S humbucking pickups
Fully hollow arched maple body for rich fullness, deep resonance and “big-body sound”
Soft “C” shaped Nato neck
12”-radius laurel fingerboard with pearloid Neo Classic™ thumbnail inlays and 22 medium jumbo frets
Real bone nut
Master volume, master tone and individual pickup volume controls provide complete tone-shaping flexibility
Push/Pull coil-splitting on Master Volume
Radio control knobs
Adjusto-Matic™ bridge with secured laurel base
Chromatic II tailpiece
Three-ply tortoise pickguard
Nickel hardware
HIGHLIGHTS:
Arched Maple Hollow Body
The G2420 Streamliner Hollow Body Single-Cut with Chromatic II tailpiece features a fully hollow arched maple body with parallel tone bars for rich fullness, deep resonance and “big-body sound.”
All-New Broad’Tron BT-3S Pickups
The G2420 features our new Broad’Tron BT-3S pickups. Utilizing a combination of Alnico 5 and Alnico 2 magnets, the new BT-3S pickups provide stronger mids, tight but full lows, and smooth clear highs that retain a smooth and musical presence.
Versatile Controls with Coil-Splitting
The Streamliner’s sonic power is harnessed and shaped by the traditional control layout—neck and bridge pickup volume controls, a master tone control, master volume control and three-way pickup switching.
The addition of a push/pull pot on the master volume control allows coil-splitting to provide useful single coil sounds, adding another layer of tonal versatility to an already strong sonic arsenal.
See more

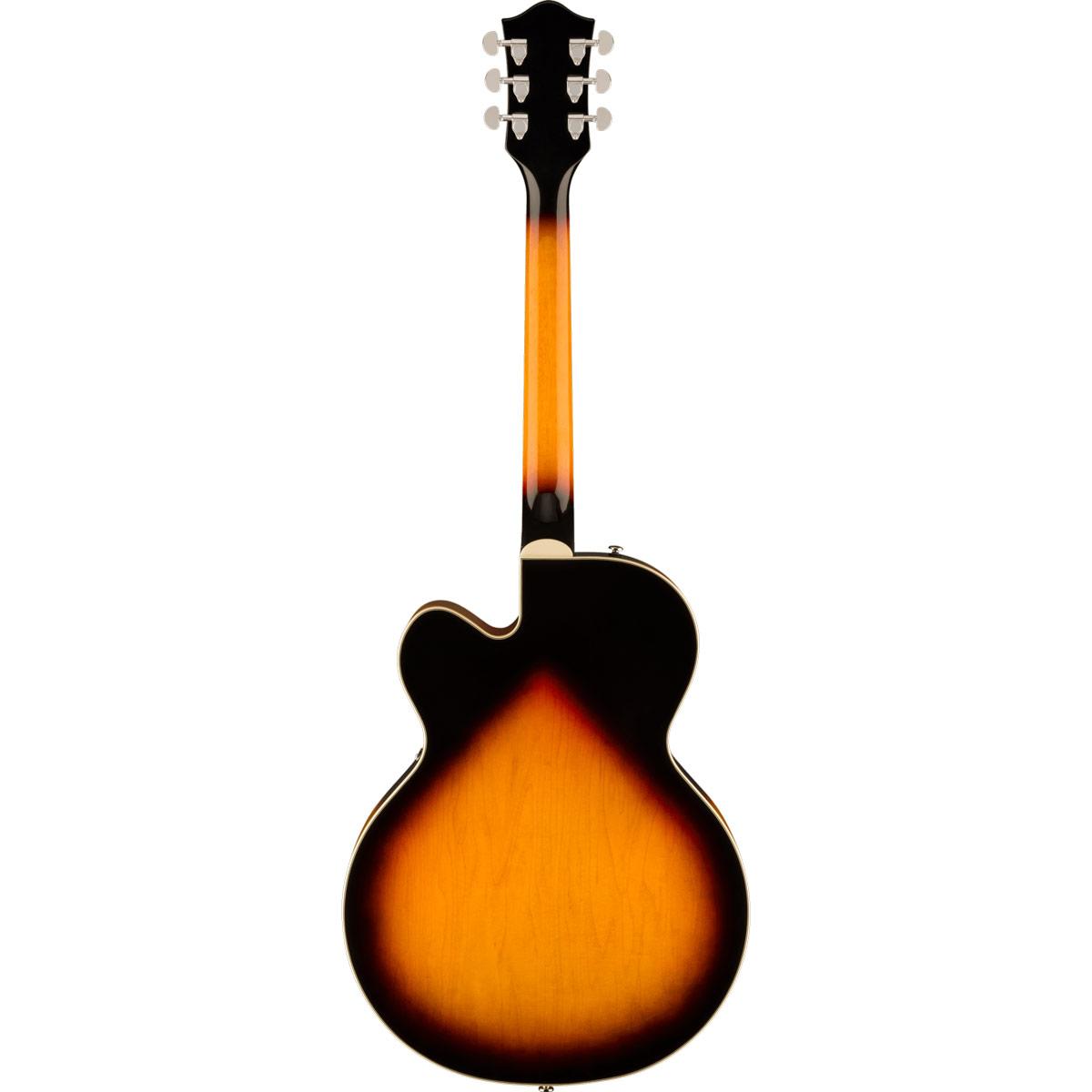

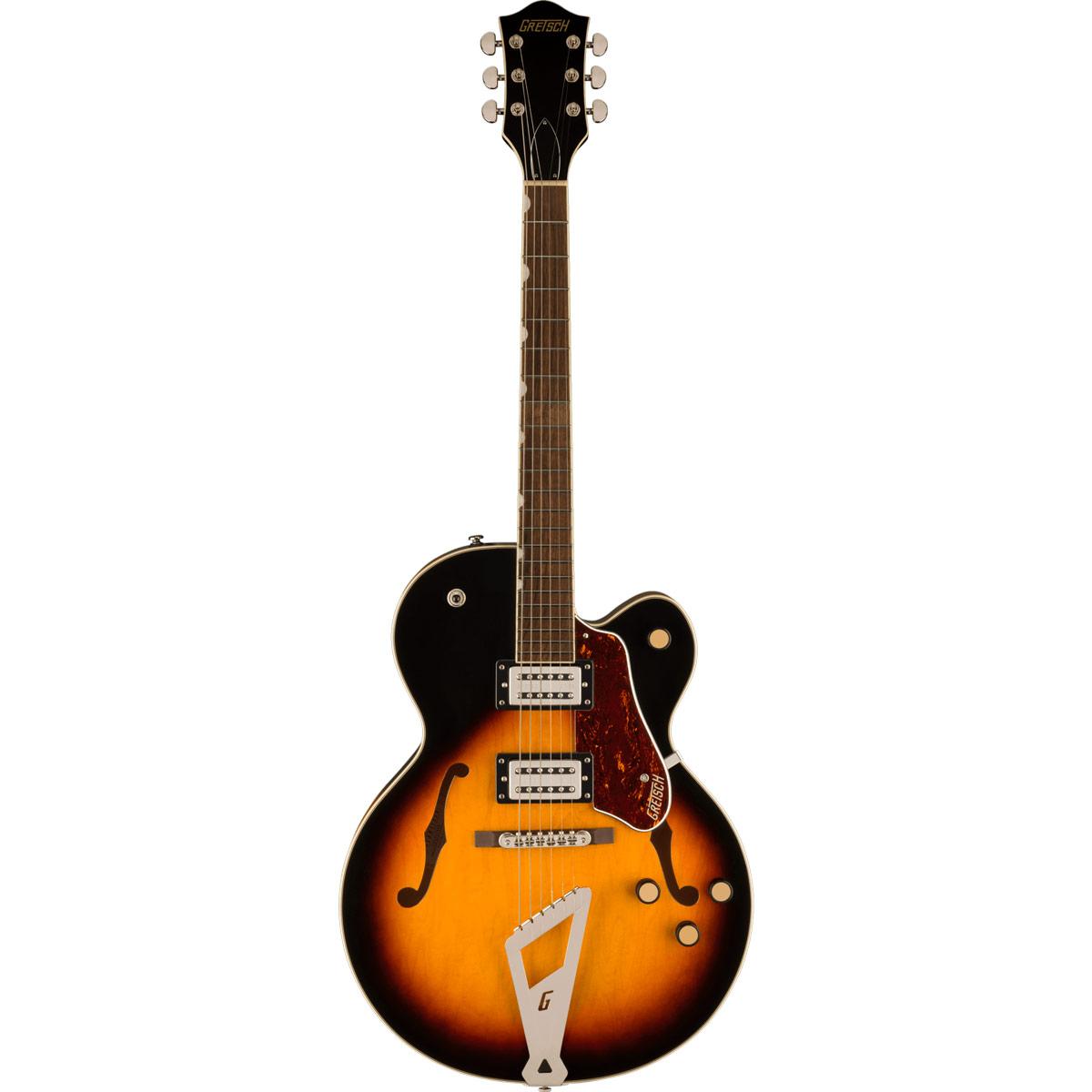

Product Name: G2420 Streamliner™ Hollow Body with Chromatic II, Laurel Fingerboard, Broad'Tron™ BT-3S Pickups - Aged Brooklyn Burst
Model #: 2817000537
General
SERIES: Streamliner™
ORIENTATION: Right-Hand
COLOR: Aged Brooklyn Burst
COUNTRY OF ORIGIN: ID
Neck
HEADSTOCK BINDING: Aged White
NECK MATERIAL: Nato
NECK FINISH: Gloss
NECK SHAPE: Soft "C"
NECK CONSTRUCTION: Set-Neck
FINGERBOARD RADIUS: 12" (305 mm)
FINGERBOARD MATERIAL: Laurel
POSITION INLAYS: Pearloid Neo-Classic™ Thumbnail
SIDE DOTS: Black
NUMBER OF FRETS: 22
STRING NUT: Bone
NUT WIDTH: 1.6875" (42.86 mm)
NUT MATERIAL: Bone
Body
BODY: Laminated Maple
BODY FINISH: Gloss
BODY SHAPE: Streamliner™ Hollow Body
BODY TOP: Arched Laminated Maple
BODY BINDING: Aged White with B/W/B Purfling
BODY BACK: Arched Laminated Maple
BODY STYLE: Gretsch® Hollow Body Guitars
BODY MATERIAL: Laminated Maple
CUTAWAY: Single Cutaway
BRACING: Parallel Tone Bars
WAIST: 9.75" (248 mm)
SOUND HOLE: F-Holes
Hardware
BRIDGE: Adjusto-Matic™
BRIDGE COVER/TAILPIECE: Bigsby® B60
BRIDGE MOUNTING: Secured
PICKGUARD: 3-Ply Tortoise with Gold Gretsch® Logo
PICKUP COVERS: Nickel
CONTROL KNOBS: Gretsch® Radio Knob
SWITCH TIP: Black
HARDWARE FINISH: Nickel
TUNING MACHINES: Die-Cast Sealed
STRINGS: Nickel Plated Steel (.010-.046 Gauges)
STRAP BUTTONS: Standard Strap Button
Electronics
BRIDGE PICKUP: Broad'Tron™ BT-3S
NECK PICKUP: Broad'Tron™ BT-3S
PICKUP CONFIGURATION: Broad'Tron™ / Broad'Tron™
CONTROLS: Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Tone, Master Volume with Push/Pull for Coil Split
SWITCHING: 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup
AUXILIARY SWITCHING: Push/Pull Pot (for Coil Split)
Measurements
DIMENSIONS: 5.70x17.80x46.10 IN
SHIPPING WEIGHT: 12.10 LB
UPPER BOUT: 11.625" (295 mm)
LOWER BOUT: 16" (406 mm)
BODY DEPTH: 2.75" (70 mm)
FRET SIZE: Medium Jumbo
SCALE LENGTH: 24.75" (629 mm)
SHIPPING LENGTH: 46.10 IN
SHIPPING HEIGHT: 5.70 IN
SHIPPING WIDTH: 17.80 IN
