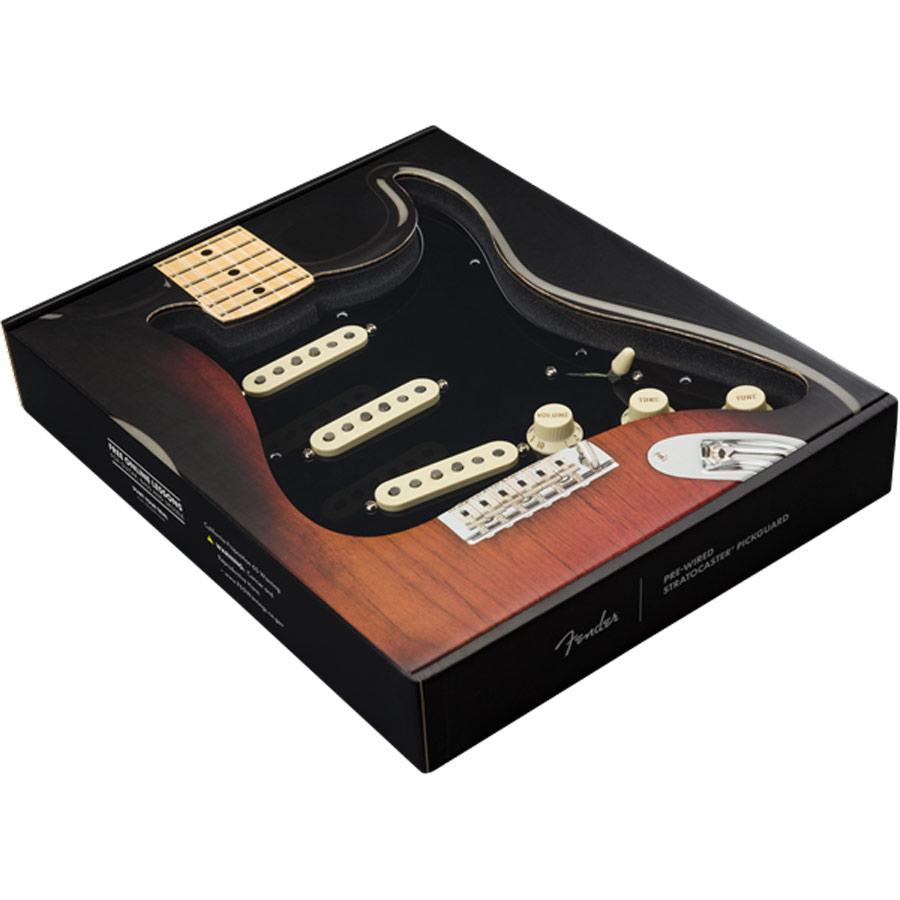

Customize your tone with the Pre-Wired Stratocaster pickguards. Made with premium components in the same factory as our iconic guitars, this drop-in pickguard is easy to install. Simply remove your old guard, solder the output jack and ground wires, screw in the new guard and you’re ready to rock with pure Fender sound.
General
SERIES: Pre-Wired Pickguards
ORIENTATION: Right-Hand
COLOR: Black
INSTRUMENT TYPE: Stratocaster®
COUNTRY OF ORIGIN: US
Hardware
PICKGUARD: 3-Ply Black
PICKGUARD PLY: 3-Ply
PICKUP COVERS: Aged White
CONTROL KNOBS: Aged White Plastic
SWITCH TIP: Aged White
HARDWARE FINISH: Chrome
MOUNTING TYPE: 11-Hole Modern
Electronics
BRIDGE PICKUP: Fat 50's Single-Coil Strat®
MIDDLE PICKUP: Fat 50's Single-Coil Strat®
NECK PICKUP: Fat 50's Single-Coil Strat®
PICKUP CONFIGURATION: SSS
LEAD WIRE: Cloth-covered
MAGNET TYPE: Alnico 5
MAGNET WIRE: Formvar-coated
SHIELDED: Yes
POLE PIECES: Staggered hand-beveled
BOBBIN MATERIAL: Fiber
CONTROLS: Master Volume, Tone 1. (Neck Pickup), Tone 2. (Bridge/Middle Pickup)
DC RESISTANCE: Neck: 6.0K. Middle: 6.3K. Bridge: 6.2K
INDUCTANCE: Neck: 2.4 Henries, Middle: 2.75 Henries, Bridge: 2.8 Henries.
POTENTIOMETERS: CTS 250K
Measurements
DIMENSIONS: 2.25x10.75x13.50 IN
SHIPPING WEIGHT: 1.45 LB
SHIPPING LENGTH: 13.50 IN
SHIPPING HEIGHT: 2.25 IN
SHIPPING WIDTH: 10.75 IN
