Designed for the players redefining what heavy looks like, the Fender® Limited Edition Fusion Series takes the most iconic silhouettes in guitar history and strips away everything that doesn't serve the riff. High-output humbuckers and noiseless single coils deliver the kind of tonal aggression that sits in a dense, down-tuned mix without disappearing. Built for the stage and the studio, the Fusion Series is Fender for the generation that plays loud and means it.

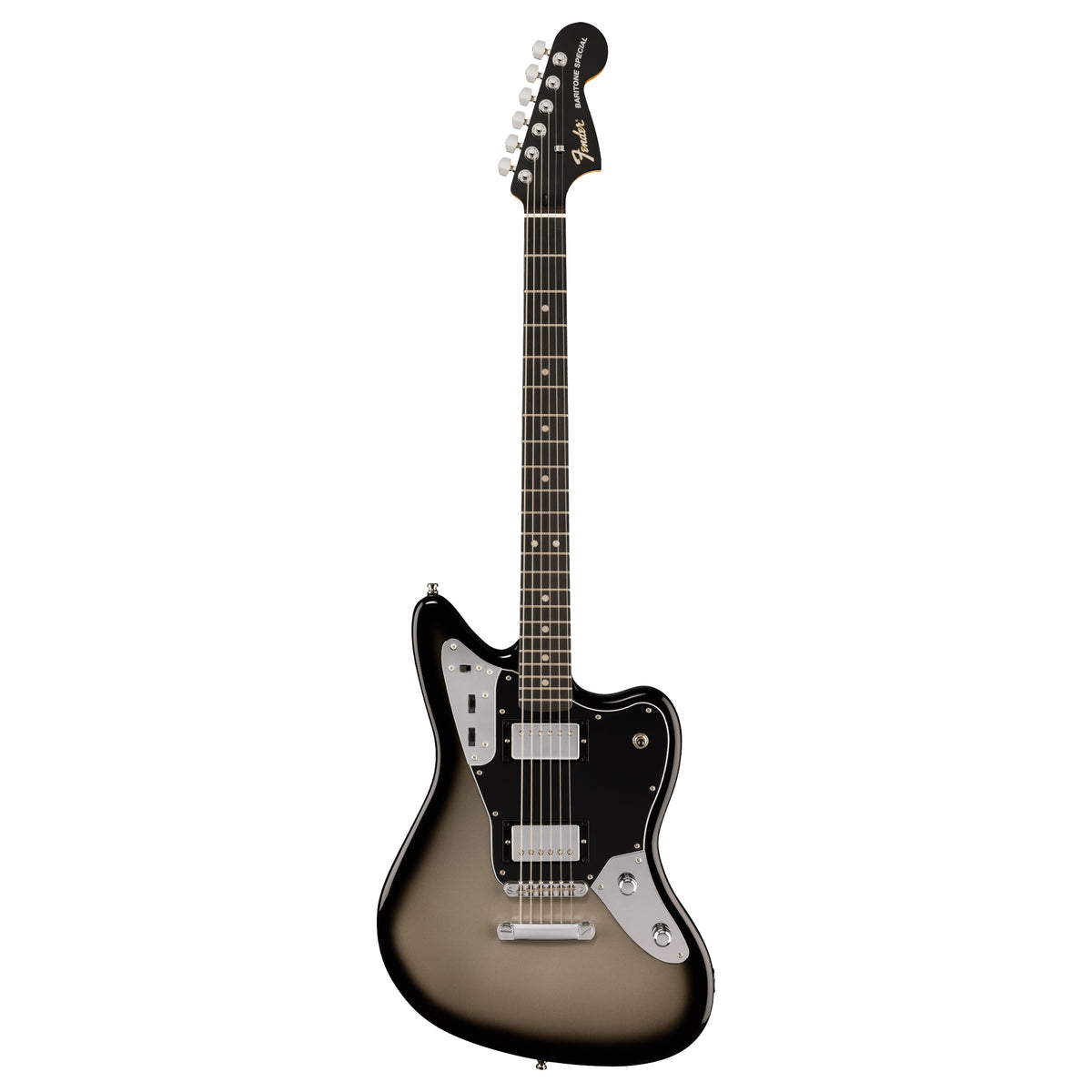

The Fusion Baritone Jaguar® goes lower, hits harder, and gives extended-range players a Fender platform that boldly keeps up. At 27" scale and tuned B to B, this Jaguar is purpose-built for drop tunings and the kind of low-end that sits at the foundation of a heavy mix. The classic Jaguar rhythm circuit control section gets a meaningful upgrade — it houses a "Spin-a-Split" wiring via Fender roller pots that progressively transform the humbuckers into single coils for a leaner, more cutting tone, while a TBX Tone circuit gives players more powerful tonal sculpting options. High-output humbuckers handle the heavy lifting across a 12"-radius ebony fingerboard that keeps runs and bends effortless across the extended scale.
Features:
- 27" Baritone Scale Length | B-to-B Tuning
- Dual High-Output Humbuckers
- "Spin-a-Split" Circuit
- TBX Tone Circuit
- 12"-Radius Ebony Fingerboard
- Black Hardware
General:
- Series: Player
- Orientation: Right-Hand
- Color: Silverburst
- Country of Origin: Mexico

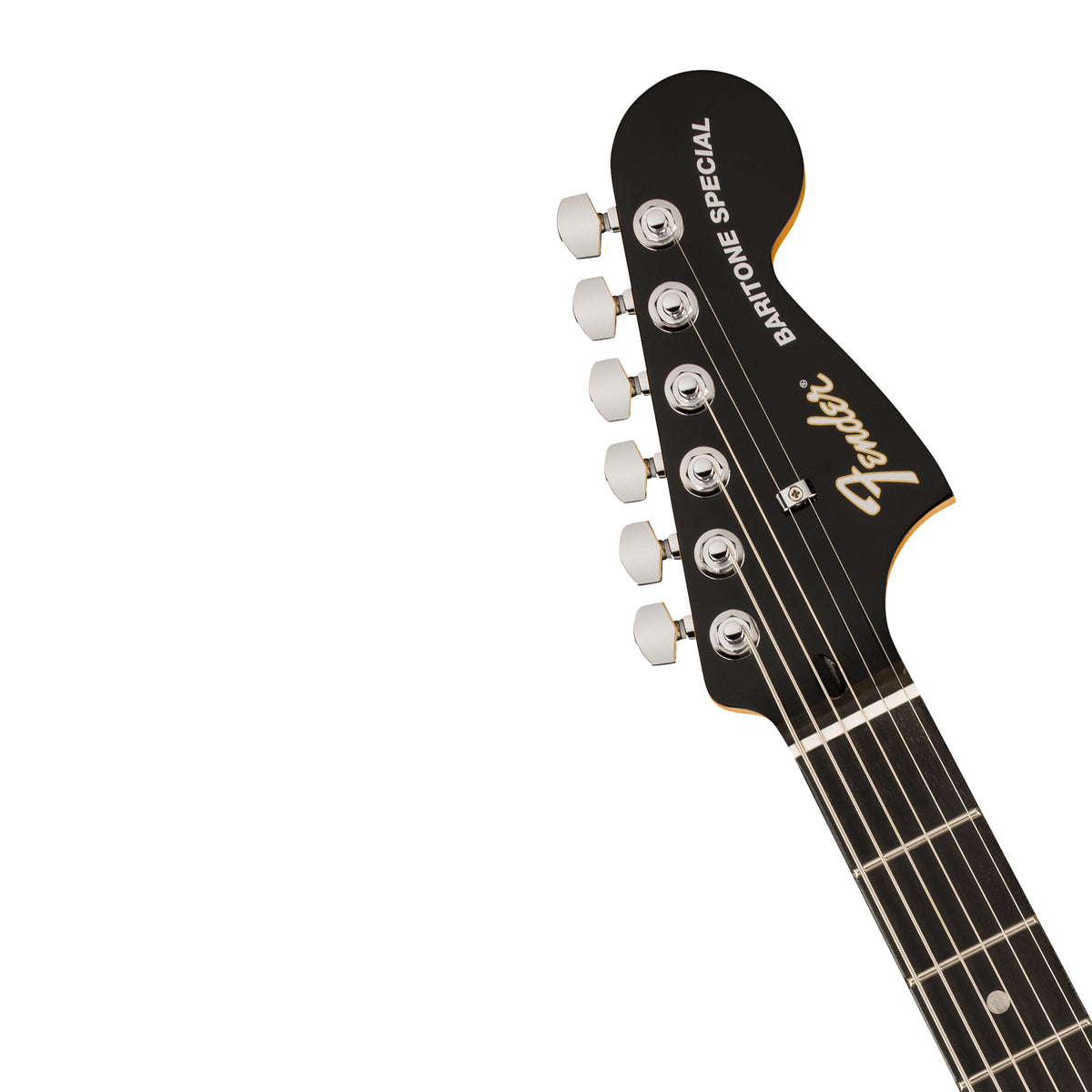

Neck:
- Neck Material: Maple
- Neck Finish: Satin Urethane
- Neck Shape: Thin "C"
- Neck Construction: 4-Bolt
- Neck Thickness: 0.790"
- Neck Thickness at 12th Fret: 0.825"
- Fingerboard Radius: 12" (305 mm)
- Fingerboard Material: Ebony
- Position Inlays: White Pearloid Dot - 7 mm
- Side Dots: White
- Number of Frets: 22
- String Nut: Synthetic Bone
- Nut Width: 1.685" (42.8 mm)
- Nut Material: Synthetic Bone
- Fret Size: Jumbo
- Scale Length: 27" (686 mm)

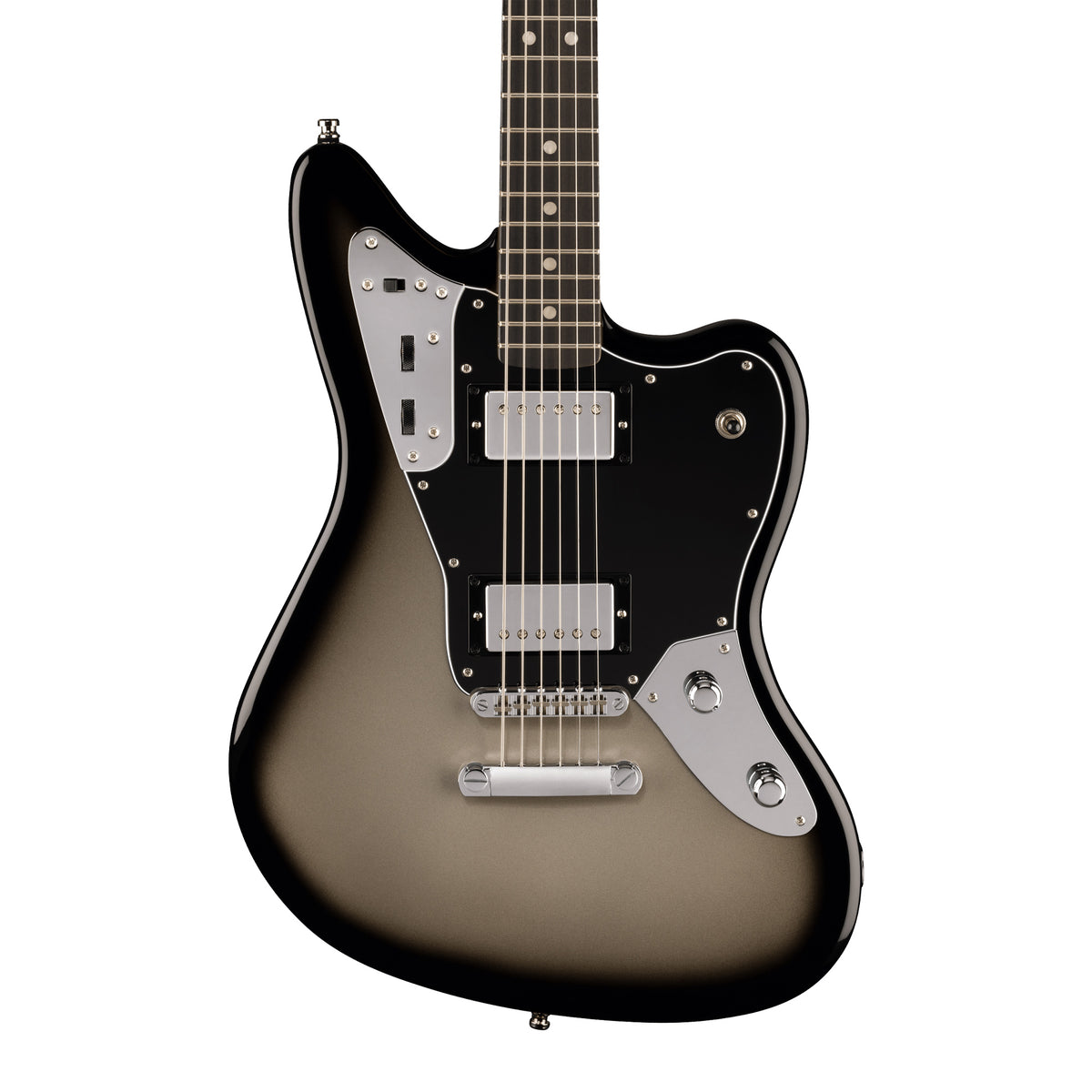

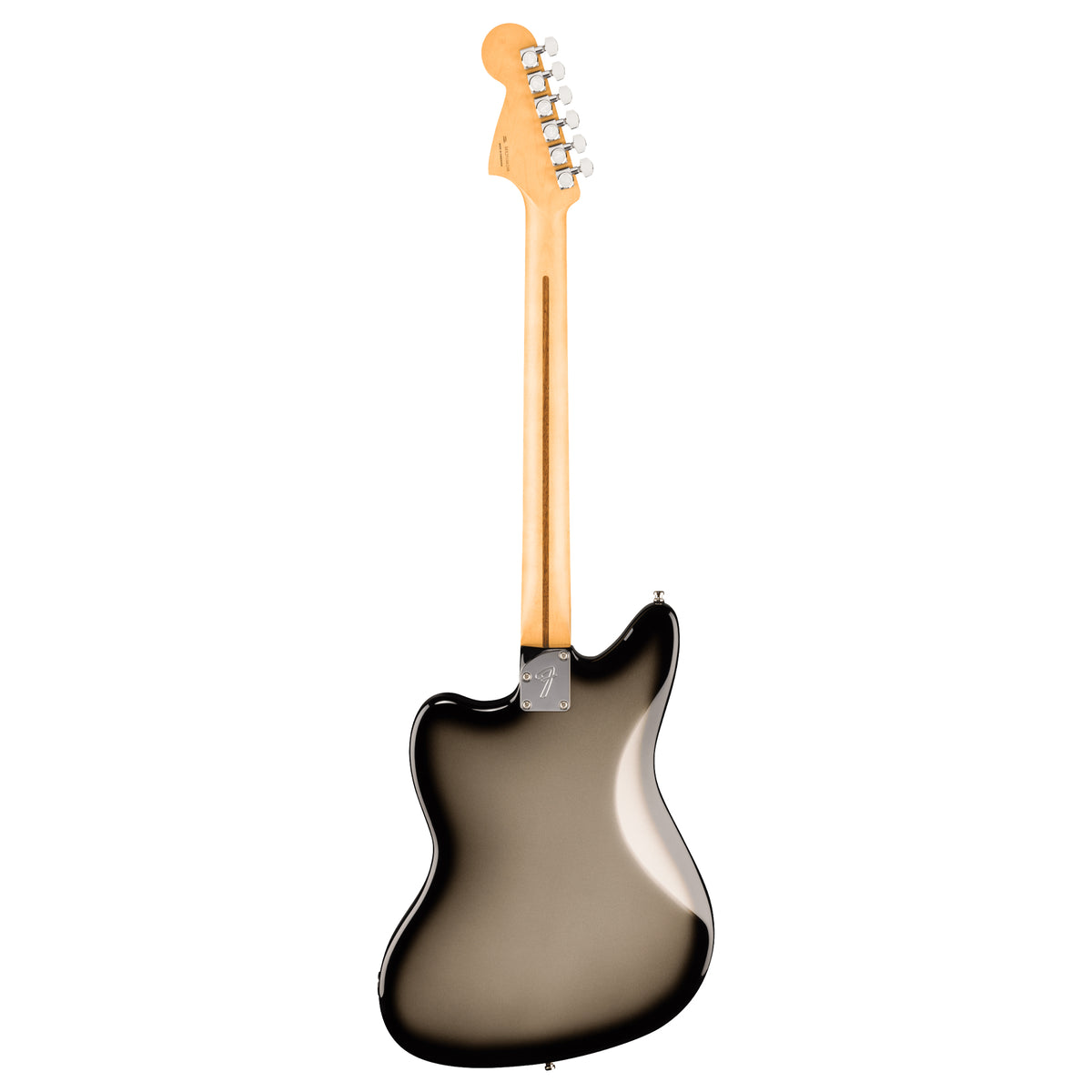

Body:
- Body: Alder
- Body Finish: Gloss Polyester
- Body Shape: Jaguar®
- Body Material: Alder
Hardware:
- Bridge: Adjust-o-Matic™
- Bridge Cover/Tailpiece: Stop Tail
- Pickguard: 3-Ply Black
- Pickup Covers: Chrome
- Control Knobs: Knurled Dome
- Hardware Finish: Nickel/Chrome

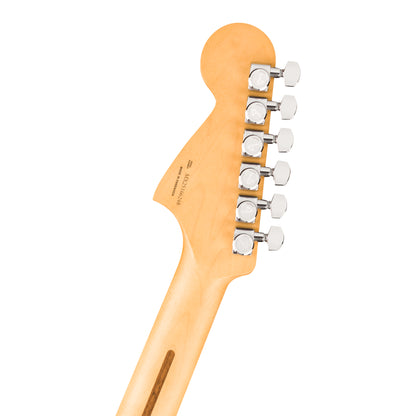

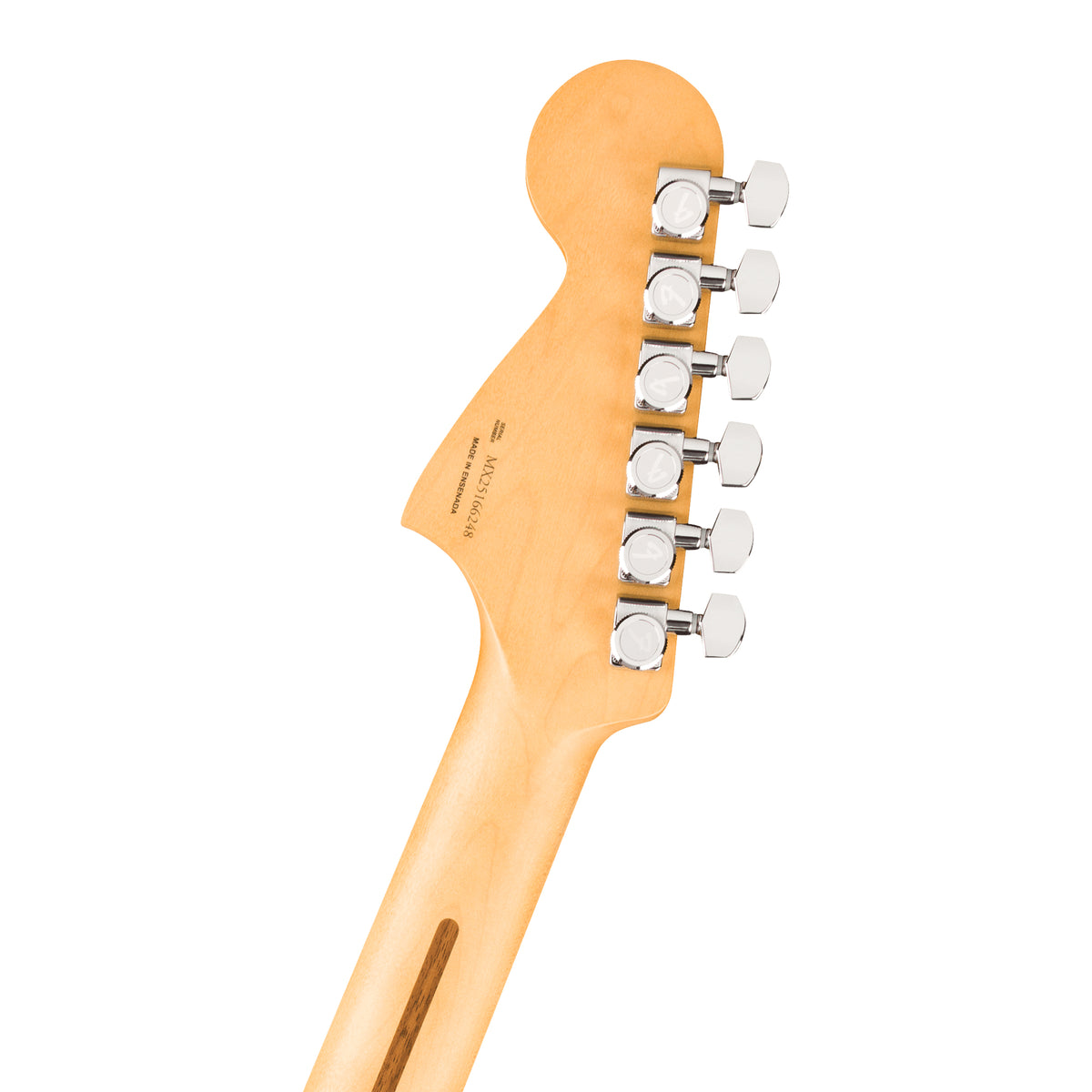

- Tuning Machines: Deluxe Staggered Cast/Sealed Locking
- Strings: Nickel-Plated Steel (0.013-0.062 Gauges)
- Neck Plate: 4-Bolt
Electronics:
- Bridge Pickup: Player II Modified Humbucker
- Neck Pickup: Player II Modified Humbucker
- Pickup Configuration: HH
- Controls: Master Volume | Master TBX™ Tone Control
- Switching: 3-Position Toggle: Position 1. Bridge Pickup | Position 2. Bridge and Neck Pickups | Position 3. Neck Pickup
- Special Electronics: Rhythm Circuit: Spin-a-Split Controls Split the Humbuckers
Measurements:
- Shipping Dimensions: 4.50" x 15.10" x 48.00"
- Shipping Weight: 9.90 lb
Miscellaneous:
- Case / Gig Bag: Deluxe Gig Bag
