Journeyman Relic® Lacquer Finish; 2-Piece Offset Seam Ash Body; 1-Piece 2A Flame Quartersawn Maple Neck with Soft "V" Back-Shape; 7.25" to 9.5" Vintage Compound Radius; 21 Narrow Tall (6105) Frets; Custom Shop Josefina Campos Hand-Wound Fat '50s Single-Coil Strat® Pickups with RWRP Middle; Strat® 1/2 Blender Wiring with Tone-Saver Bleed; 5-Way Switch; 1-Ply Parchment Pickguard; 6-Saddle Vintage-Style Synchronized Tremolo with Bent Steel Saddles; Vintage-Style Tuning Machines with Fender® Logo; Bone Nut; American Vintage '56-'58 String Tree; Deluxe Hardshell Case; Strap; Certificate of Authenticity.
Model #: 9215006242
UPC #: 885978728169
Instrument Weight: 7.3 LBs
Specifications
General
Series: Masterbuilt
Orientation: Right-Hand
Color: Faded Aged Chocolate 3-Color Sunburst
Country of Origin: US

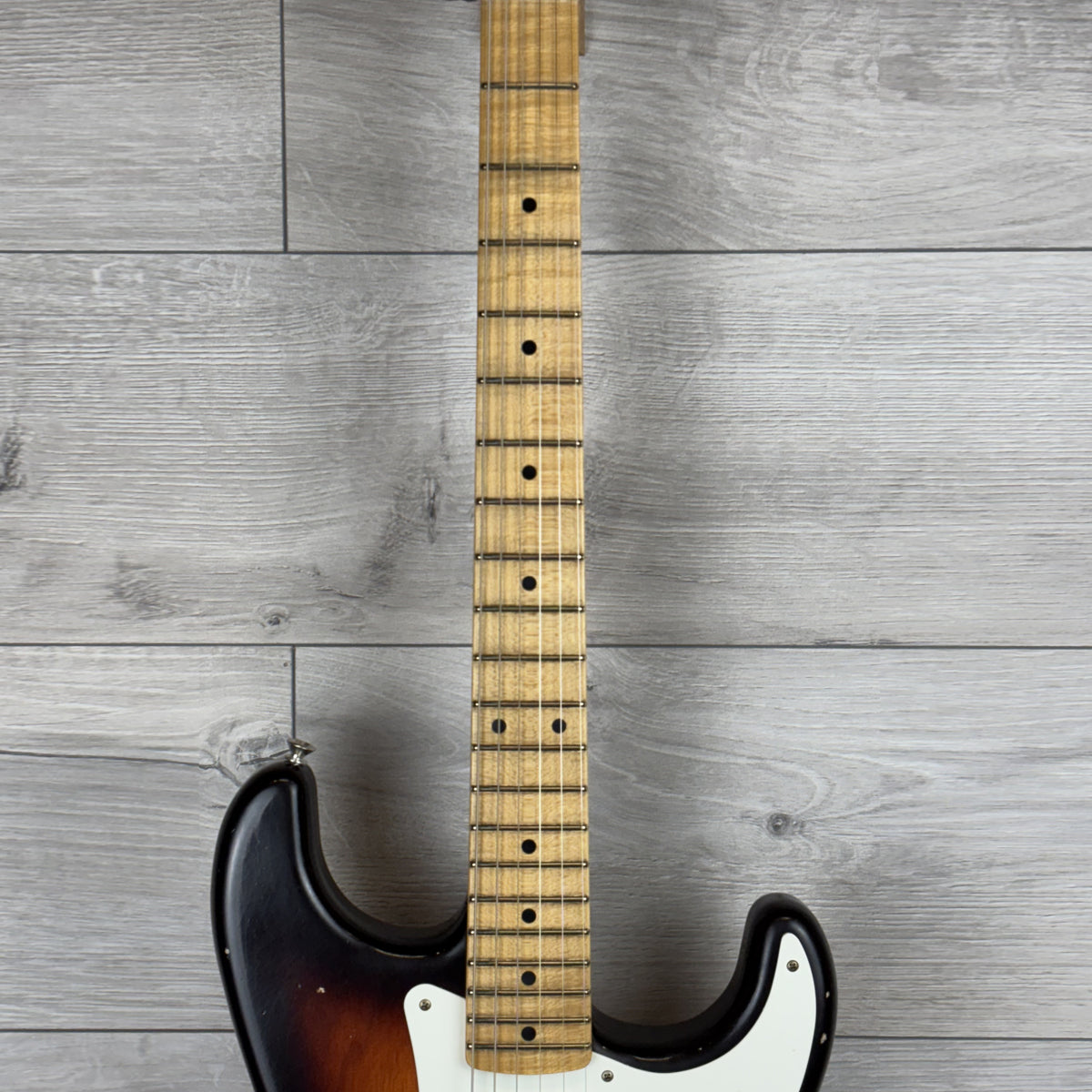

Neck

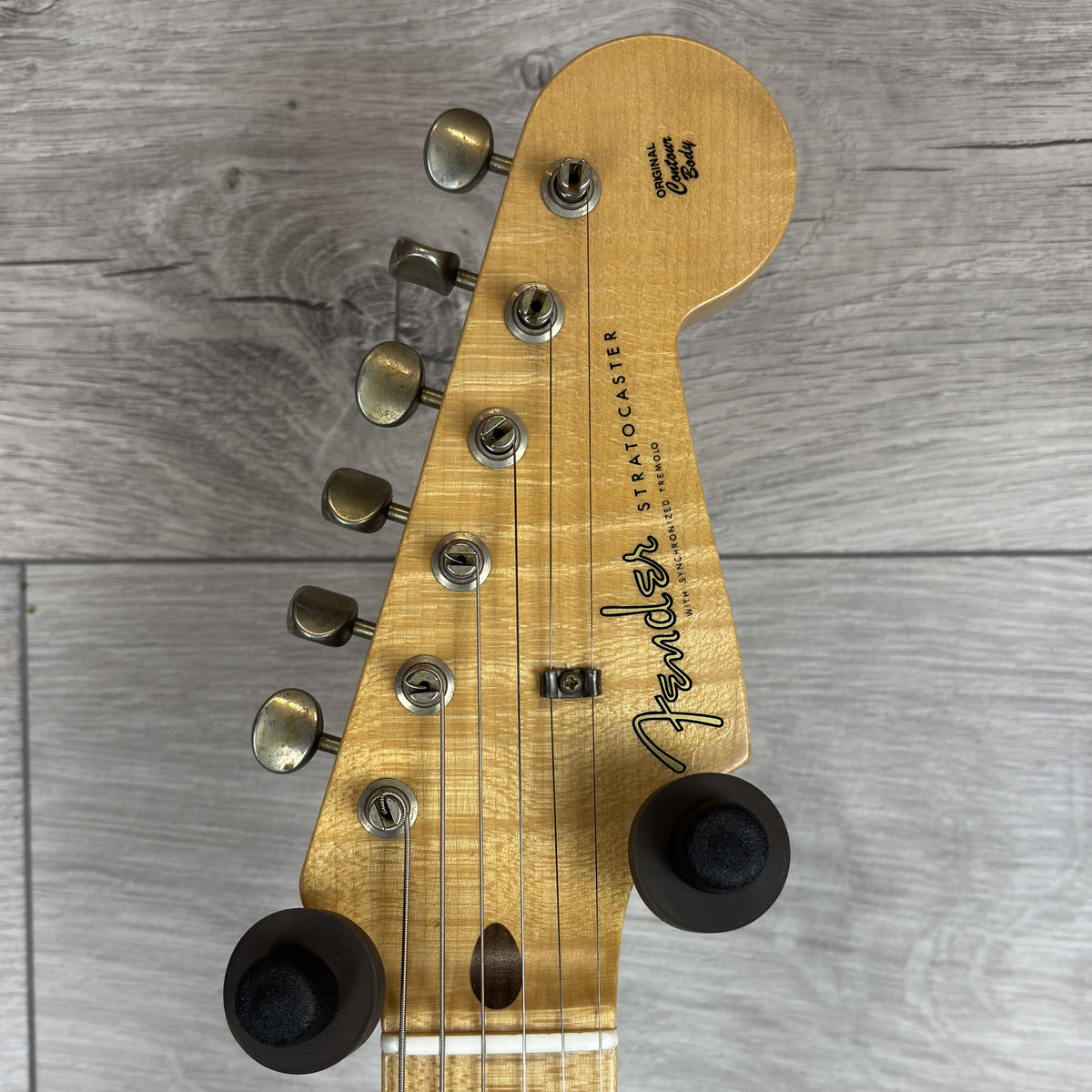

Headstock: Stratocaster®
Neck Material: 1-Piece 2A Flame Quartersawn Maple
Neck Finish: Nitrocellulose Lacquer
Neck Shape: Soft "V"
Neck Thickness: .850"
Neck Thickness 12th Fret: .980"
Neck Butt Width: 2.200"
Fingerboard Radius: 7.25" to 9.5" Vintage Compound Radius (184–241 mm)
Fingerboard Material: 1-Piece 2A Quartersawn Flame Maple
Position Inlays: Black Micarta Dot – 0.25"
Side Dots: Black Micarta, 3/32" (2.38 mm)
Number of Frets: 21
Truss Rod: Vintage-Style Heel Adjust
String Nut: Bone
Nut Width: 1.650" (42 mm)
Nut Material: Bone
Fret Size: Narrow Tall (6105)
Scale Length: 25.5" (648 mm)
Body
Body: 2-Piece Offset Seam Ash
Body Finish: Nitrocellulose Lacquer
Body Shape: Stratocaster®
Body Style: Solid Body
Body Material: 2-Piece Offset Seam Ash
Hardware
Bridge: 6-Saddle Vintage-Style Synchronized Tremolo with Bent Steel Saddles
Pickguard: 1-Ply Parchment
Control Knobs: Aged White
Switch Tip: Vintage White
Hardware Finish: Nickel/Chrome
Tuning Machines: Vintage-Style with Fender® Logo
String Trees: American Vintage '56–'58
Strings: Nickel Plated Steel (.010–.046)
Tremolo Arm: Vintage-Style Tremolo Arm
Neck Plate: 4-Bolt Serialized
Strap Buttons: Vintage-Style
Electronics
Bridge Pickup: Custom Shop Hand-Wound Fat '50s Single-Coil Strat®
Middle Pickup: Custom Shop Hand-Wound RWRP Fat '50s Single-Coil Strat®
Neck Pickup: Custom Shop Hand-Wound Fat '50s Single-Coil Strat®
Pickup Configuration: SSS
Controls: Master Volume, Master Tone, 1/2 Blend
Switching:
• Position 1 – Bridge with Neck Blend
• Position 2 – Bridge & Middle with Neck Blend
• Position 3 – Middle
• Position 4 – Neck & Middle
• Position 5 – Neck
Potentiometers: 250K 10% Taper Split
Measurements
Shipping Dimensions: 6.40 x 17.30 x 43.70 in
Shipping Weight: 23.40 lb
Shipping Length: 43.70 in
Shipping Height: 6.40 in
Shipping Width: 17.30 in
Accessories
Included: Deluxe Hardshell Case, Strap, Certificate of Authenticity
