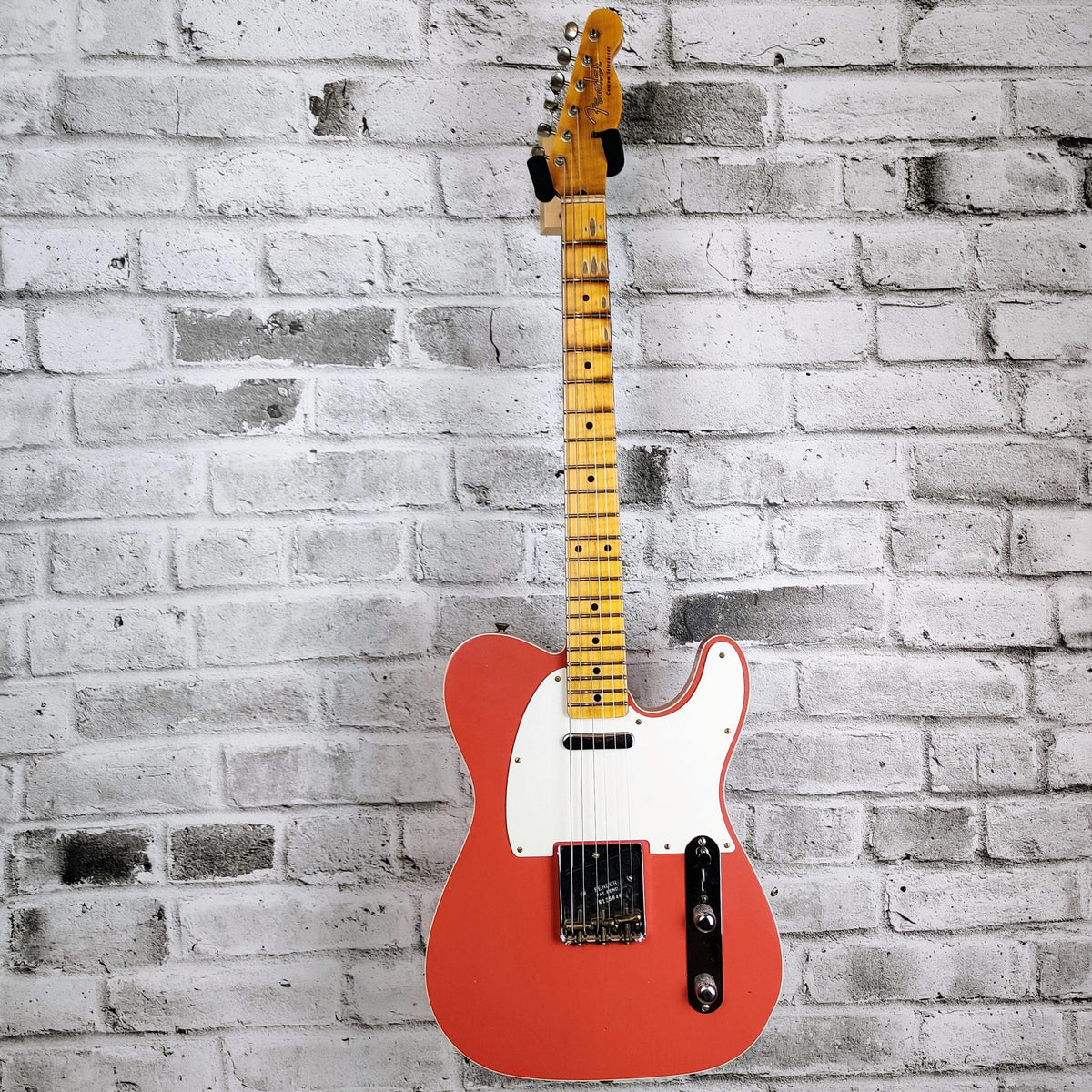

The Limited Edition 50s Twisted Tele Custom Journeyman Relic is everything you would imagine from the Fender Custom Shop—from vintage swagger to all the little enhancements that create a one-of-a-kind playing experience. The two-piece ash body wears a Journeyman Relic lacquer finish, which is the perfect amount of relic for players who intend to inflict more natural wear and tear themselves. The one-piece 2A flame maple neck boasts a ’57 soft “V” profile, vintage compound radius (7.25”-9.5”) and 21 narrow tall (6105) frets. We reversed the angle of the hand-wound Twisted Tele bridge pickup to fatten up the treble strings and tighten the bass side for customized tonal perfection, while the hand-wound Twisted Tele neck pickup is mounted to the body for extra stability and stronger tone. Three-way switching and Fat ’50s Tele wiring produce juicier tone and more transparent bloom.
Other features include a single-ply eight-hole parchment pickguard, reverse Nocaster® bridge with compensated brass saddles for perfect intonation, vintage-style tuning machines, bone nut, and single wing string tree. Also includes deluxe hardshell case, strap and certificate of authenticity.
General
SERIES: Limited Edition
ORIENTATION: Right-Hand
COLOR: Aged Tahitian Coral
COUNTRY OF ORIGIN: US
Neck

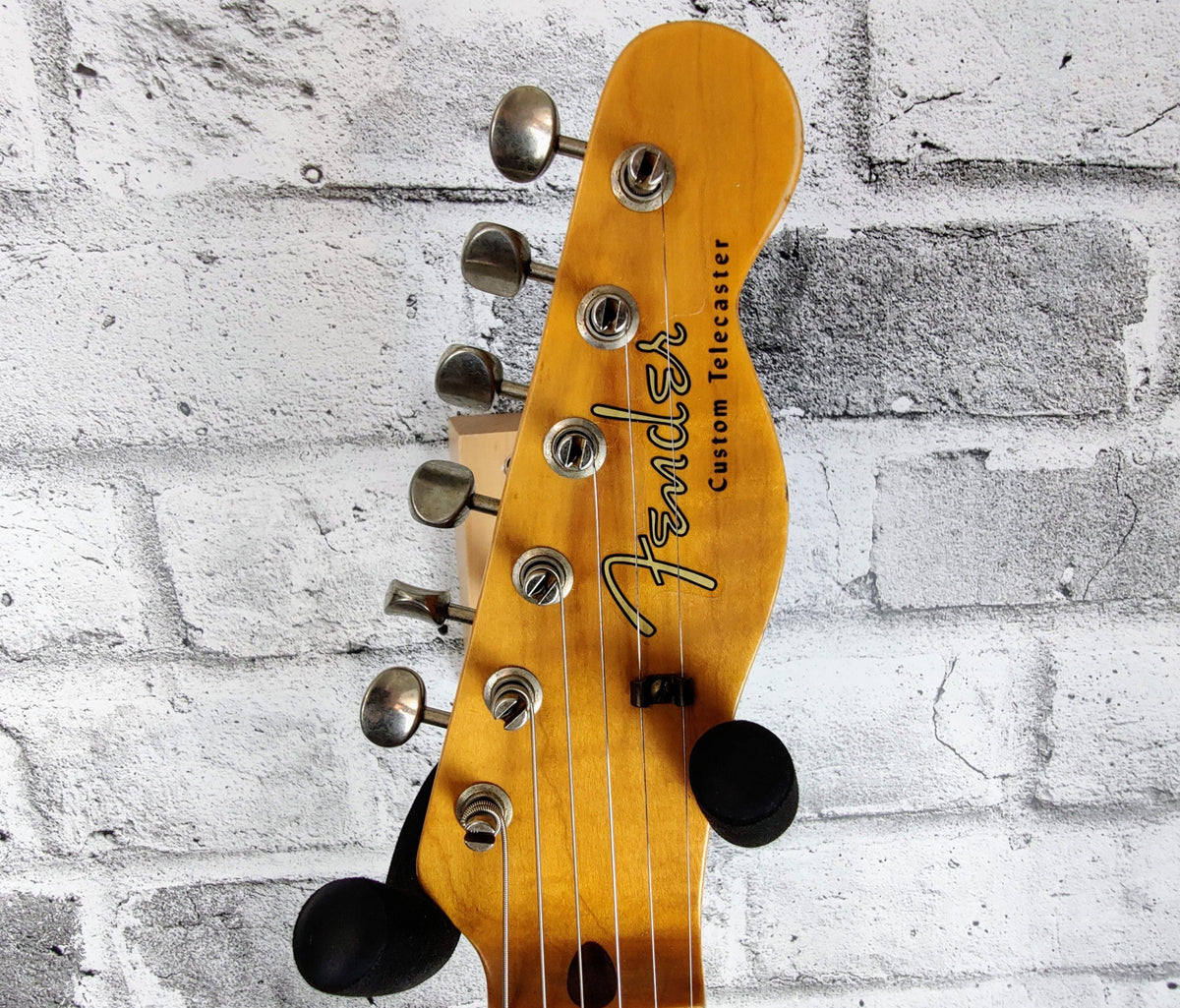

HEADSTOCK: Telecaster®

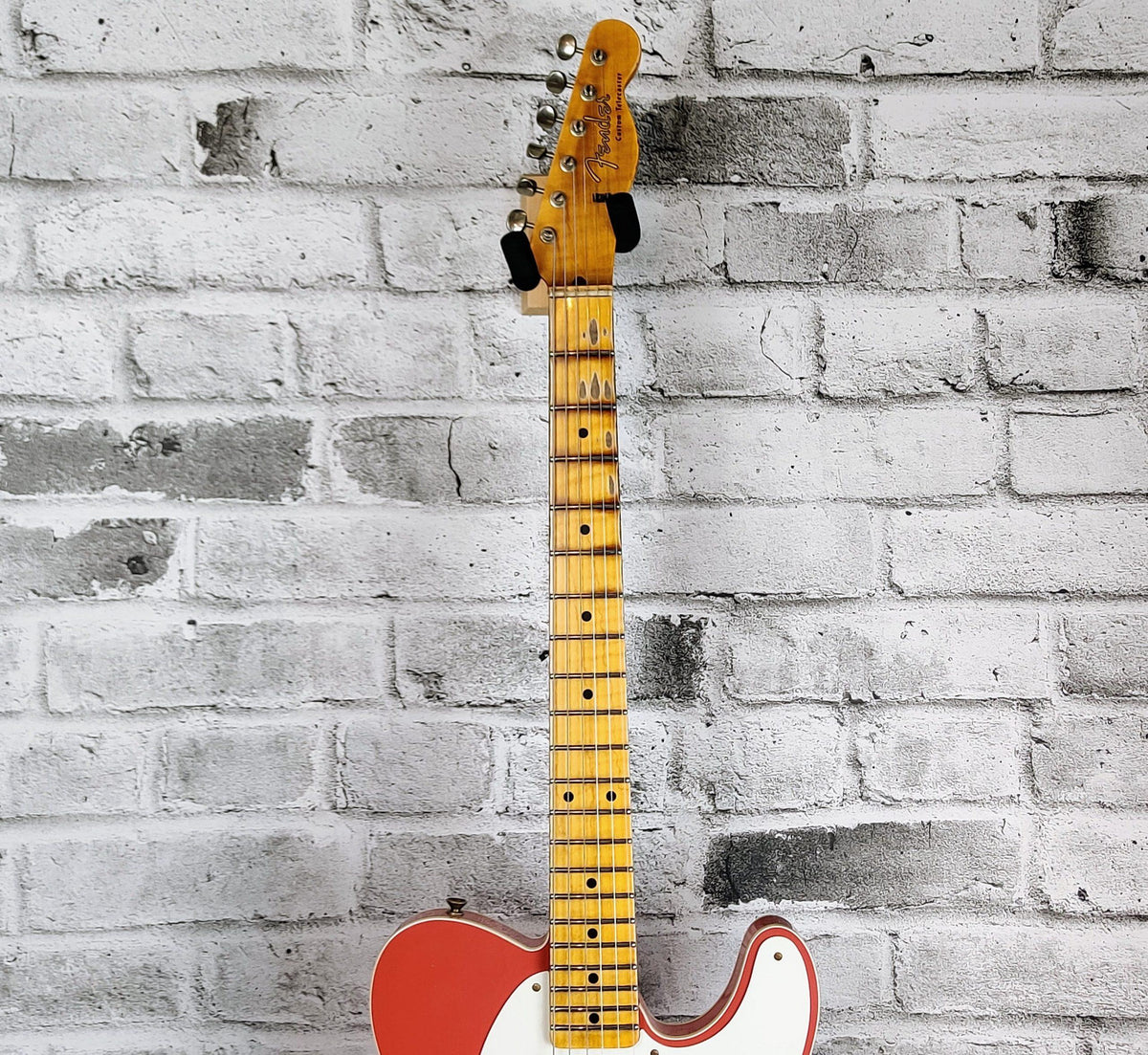

NECK MATERIAL: 1-Piece 2A Flame Quartersawn Maple
NECK FINISH: Nitrocellulose Lacquer
NECK SHAPE: 1957 Soft "V"
NECK THICKNESS: .850"
NECK BUTT WIDTH: 2.200"
NECK THICKNESS 12TH FRET: .990"
FINGERBOARD RADIUS: 7.25" to 9.5" Vintage Compound Radius (184 mm to 241 mm)
FINGERBOARD MATERIAL: 1-Piece 2A Flame Maple Neck
POSITION INLAYS: Micarta Black Dot
NUMBER OF FRETS: 21
TRUSS ROD: Vintage-Style
STRING NUT: Bone
NUT WIDTH: 1.625" (41.3 mm)
NUT MATERIAL: Bone
Body

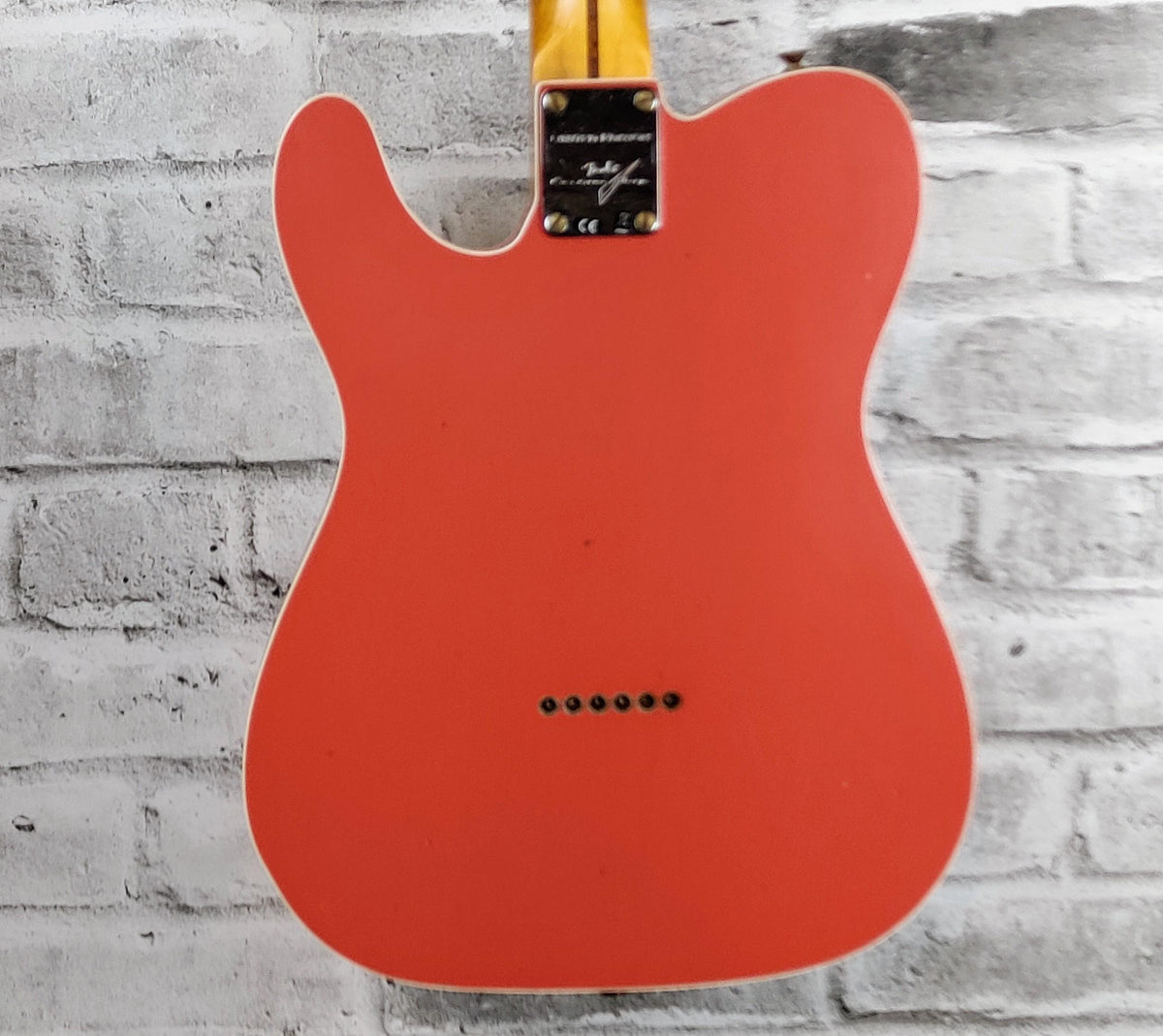

BODY: 2-Piece Select Ash
BODY FINISH: Lacquer
BODY SHAPE: Telecaster®
BODY MATERIAL: 2-Piece Select Ash
Hardware
BRIDGE: Reverse Nocaster® Bridge with Brass RSD Saddles
PICKGUARD: 1-Ply Parchment
CONTROL KNOBS: Knurled Chrome
SWITCH TIP: Black
HARDWARE FINISH: Nickel/Chrome

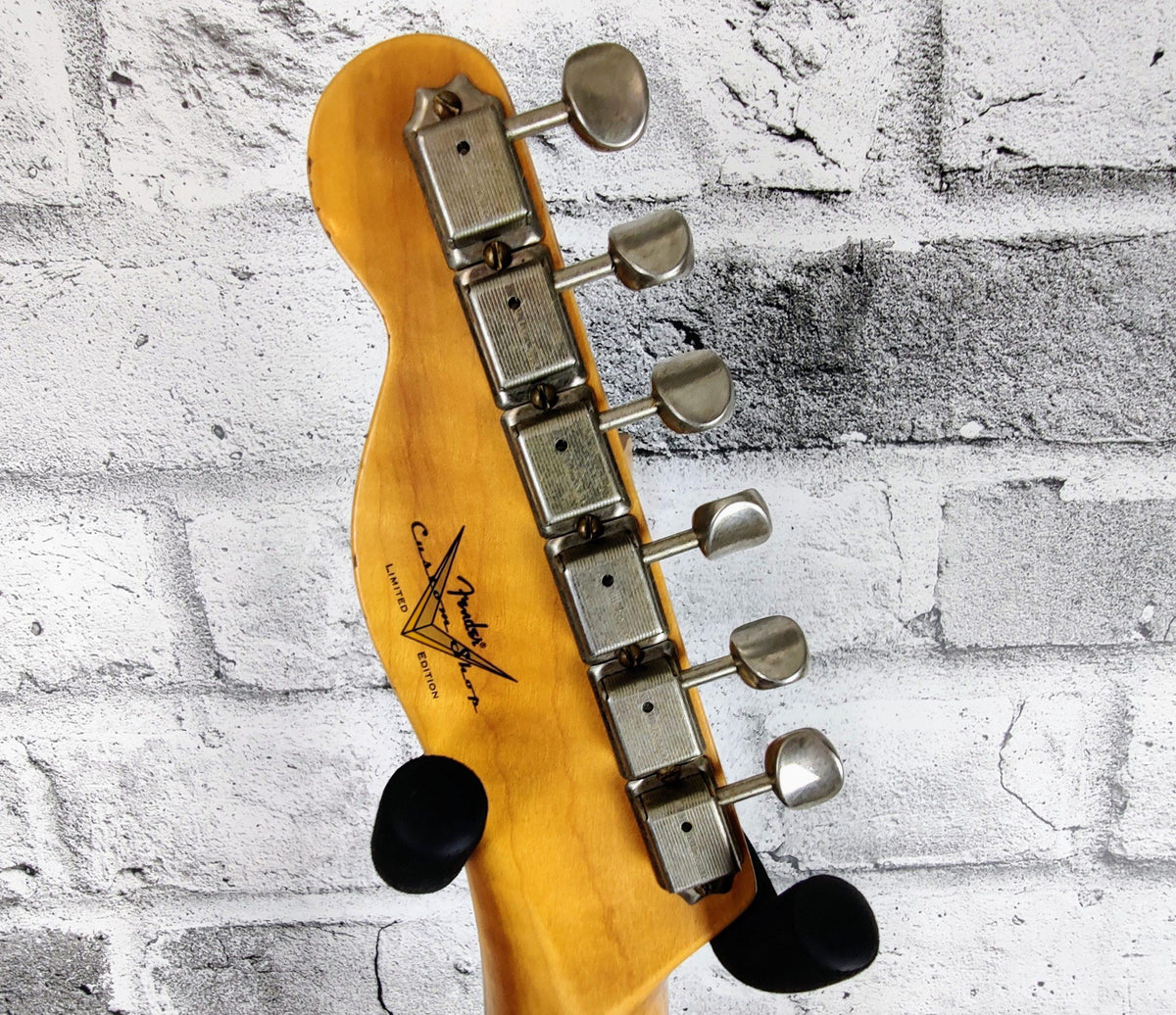

TUNING MACHINES: Vintage-Style
STRING TREES: Single Wing
STRINGS: Nickel Plated Steel (.010-.046 Gauges)
NECK PLATE: 4-Bolt
Electronics
BRIDGE PICKUP: Custom Shop Hand-Wound Twisted Tele® Single-Coil
MIDDLE PICKUP: N/A
NECK PICKUP: Custom Shop Hand-Wound Twisted Tele® Single-Coil
PICKUP CONFIGURATION: SS
CONTROLS: Volume, Tone
SWITCHING: 3-Position Blade: Position 1. Bridge Pickup, Position 2. Middle Pickup, Position 3. Neck Pickup
Measurements
DIMENSIONS: 6.40x17.30x43.70 IN
SHIPPING WEIGHT: 23.40 LB
HEADSTOCK THICKNESS: 0.575"
FRET SIZE: Narrow Tall
SCALE LENGTH: 25.5" (64.77 cm)
SHIPPING LENGTH: 43.70 IN
SHIPPING HEIGHT: 6.40 IN
SHIPPING WIDTH: 17.30 IN
Accessories
INCLUDED ACCESSORIES: Deluxe Hardshell Case, Strap and Certificate of Authenticity.
