Born in Corona, California, the American Performer Stratocaster delivers the exceptional tone and feel you expect from an authentic Fender—with new enhancements that make it even more inspiring to play.

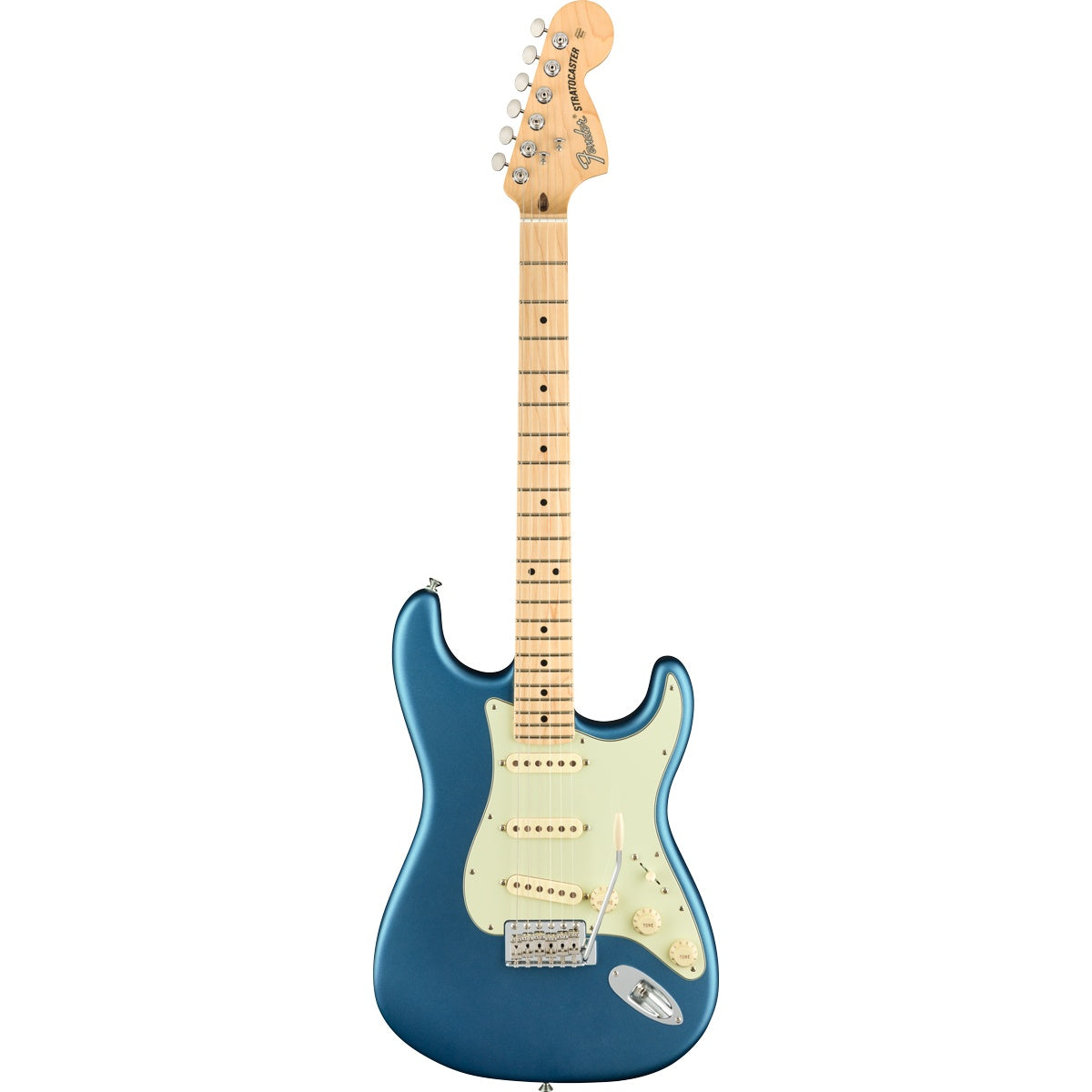

Product Name: American Performer Stratocaster, Maple Fingerboard - Satin Lake Placid Blue
Model #: 0114912302
General
Color: Satin Lake Placid Blue
Country Of Origin: US
Orientation: Right-Hand
Series: American Performer
Neck
Fingerboard Material: Maple
Fingerboard Radius: 9.5" (241 mm)
Neck Finish: Satin Urethane
Neck Material: Maple
Neck Shape: Modern "C"
Number of Frets: 22
Nut Material: Synthetic Bone
Nut Width: 1.685" (42.8 mm)
Position Inlays: Black Dot
String Nut: Synthetic Bone
Truss Rod: Standard
Truss Rod Nut: 1/8" American Series
Body
Body: Alder
Body Finish: Satin Urethane
Body Material: Alder
Body Shape: Stratocaster®
Hardware
Bridge: 6-Saddle Vintage-Style Synchronized Tremolo
Bridge Mounting: 6-Screw Vintage-Style
Control Knobs: Aged White Plastic
Hardware Finish: Nickel/Chrome
Neck Plate: 4-Bolt
Pickguard: 3-Ply Mint Green
Pickup Covers: Aged White
Strap Buttons: Vintage-Style
String Trees: Dual-Wing
Strings: Fender® USA 250L Nickel Plated Steel (.009-.042 Gauges), PN 0730250403
Switch Tip: Aged White
Tuning Machines: Fender® ClassicGear™
Electronics
Auxiliary Switching: Push/Pull Switch On Tone 2 Adds Neck Pickup To Positions 1 and 2
Bridge Pickup: Yosemite® Singe-Coil Stratocaster®
Controls: Master Volume, Tone 1. (Neck & Middle Pickup), Tone 2. Greasebucket™ Tone Circuit (Bridge Pickup)
Middle Pickup: Yosemite® Single-Coil Stratocaster®
Neck Pickup: Yosemite® Single-Coil Stratocaster®
Pickup Configuration: SSS
Special Electronics: Push/Pull Switch up on Tone 2 adds Neck Pickup in Parallel For Positions 1 and 2
Switching: 5-Position Blade: Position 1. Bridge Pickup Position 2. Bridge and Middle Pickup Position 3. Middle Pickup Position 4. Middle and Neck Pickup Position 5. Neck Pickup
Accessories
Saddle Height Wrench: .050" Hex (Allen) Wrench
Truss Rod Wrench: 1/8" Hex (Allen)
Measurements
Dimensions: 5.20x15.20x42.50 IN
Fret Size: Jumbo
Scale Length: 25.5" (648 mm)
Shipping Height: 5.20 IN
Shipping Length: 42.50 IN
Shipping Weight: 13.30 LB
Shipping Width: 15.20 IN
