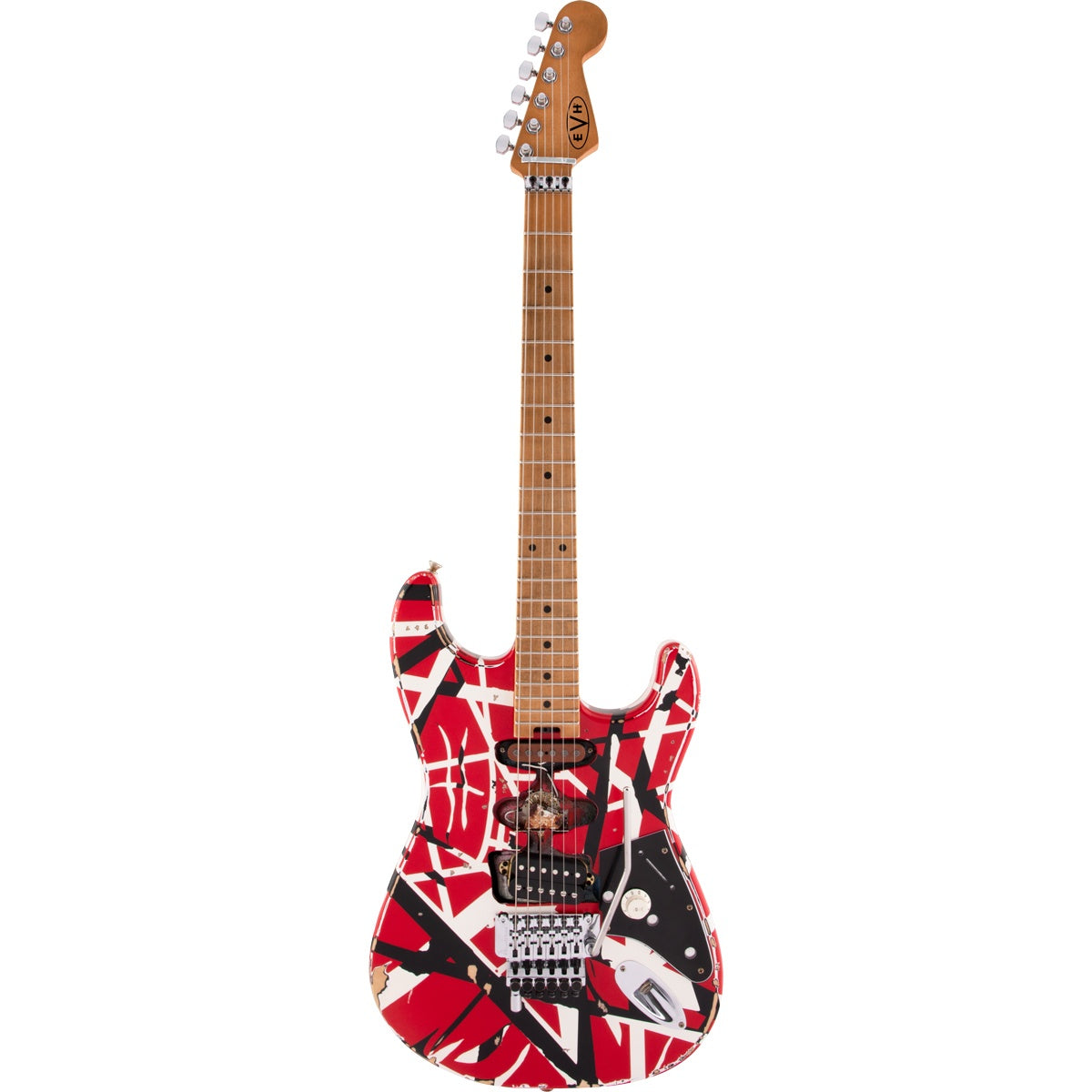

Widely regarded as the most recognizable electric guitar ever, Eddie Van Halen’s iconic and revered Frankenstein™ guitar now comes your way with a price tag the everyday musician can afford in the form of the EVH® Striped Series Frankenstein™ "Frankie."
Sporting Eddie’s famed red with white-and-black-striped paint job and a worn-in reliced look, the all-new Frankie features a basswood Stratocaster®-style body paired to a graphite-reinforced quartersawn maple neck. An oiled finish on the back of the neck allows for hours of playing comfort, while the 12”-16” compound radius maple fingerboard with 22 jumbo frets was designed for fast and furious playing styles.
Routed for an HSS pickup configuration just like Eddie’s original, Frankie features an EVH Wolfgang® humbucking bridge pickup with a dummy Strat® neck pickup and a dummy five-way blade housed in the middle position.
A sturdy and dependable EVH-branded Floyd Rose® locking trem and Floyd Rose locking nut work in tandem for precise tuning even with extreme changes in pitch, while the EVH D-Tuna® retunes to drop-D and back with strict accuracy at the flick of a finger.
Other unique features include a white skirted Strat-style single volume control knob (labeled “tone”), custom black pickguard, reliced chrome hardware, standard strap buttons and EVH neck plate.
Product Name: Striped Series Frankenstein™ Frankie, Maple Fingerboard - Red with Black Stripes Relic
Model #: 5107900503
General
Color: Red with Black Stripes Relic
Country Of Origin: MX
Orientation: Right-Hand
Series: Striped Series
Neck
Fingerboard Material: Maple
Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
Headstock: Licensed Fender® Stratocaster®
Neck Construction: Bolt-On with Graphite Reinforcement
Neck Finish: Oiled
Neck Material: Quartersawn Maple
Neck Shape: EVH® Modified "C" Backshape
Neck Thickness: .790" at 3rd fret & .825" at 12th fret
Number of Frets: 22
Nut Material: Floyd Rose® R3 Locking
Nut Width: 1.6875" (42.86 mm)
Position Inlays: Black Dot
String Nut: Floyd Rose® R3 Locking
Truss Rod: Two-Way Adjustable
Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
Body
Body: Basswood
Body Finish: Satin Lacquer
Body Material: Basswood
Body Shape: Stratocaster®
Hardware
Bridge: EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
Control Knobs: Parchment Stratocaster®-Style Skirt (Labeled "Tone")
Hardware Finish: Chrome Relic
Neck Plate: 4-Bolt Standard
Pickguard: Black Custom Frankie
Pickup Covers: Black
Strap Buttons: Oversized
String Trees: Floyd Rose® Retainer Bar
Strings: EVH® Nickel Plated Steel (.009-.042 Gauges)
Tremolo Arm: Floyd Rose® 1000 Series Locking
Tremolo Block: Brass
Tuning Machines: EVH®-Branded Gotoh®
Electronics
Bridge Pickup: Direct Mount EVH® Wolfgang® Humbucking
Controls: Volume
Middle Pickup: N/A
Neck Pickup: Dummy Strat® Pickup
Pickup Configuration: HSS
Switching: Dummy Five-Way Blade
Accessories
Included Accessories: Tremolo Arm, Hex Keys & User Manual
Truss Rod Wrench: 2.5 mm Hex
Measurements
Dimensions: 4.50x15.20x42.10 IN
Fret Size: Jumbo
Scale Length: 25.5" (648 mm)
Shipping Height: 4.50 IN
Shipping Length: 42.10 IN
Shipping Weight: 11.45 LB
Shipping Width: 15.20 IN
