This sports a basswood body with arched top, robust graphite-reinforced quartersawn maple neck - carved and rolled to EVH's exacting specifications - and a speedy 12"-16" compound-radius ebony fingerboard with 22 jumbo frets for facilitating energetic riffing and blazing leads. A heel-mount truss rod adjustment wheel also makes for quick and easy neck relief tweaks, a feature guitar techs everywhere will thank you for.
The crystal-clear custom-designed EVH Wolfgang Humbucking pickups are mounted direclty to the body, supplying girth and sparkle, as well as near-endless sustain to power chords and melody lines.
Features:

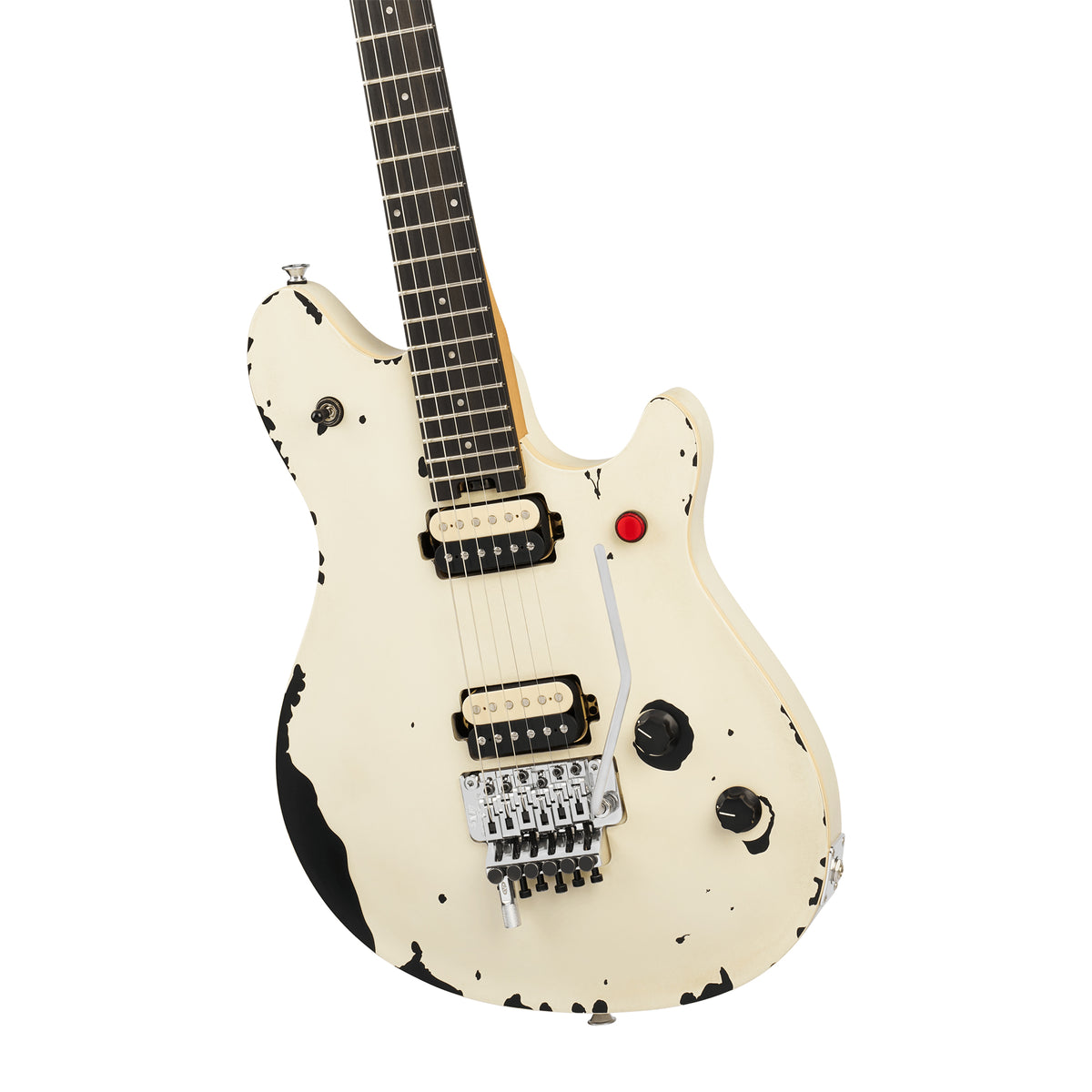

- Basswood body with single humbucker and “decked” Floyd Rose bridge
- EVH Wolfgang AL2 Bridge pickup and AL3 Neck pickup
- EVH Floyd Rose 1000 series tremelo and R2 locking nut
- Quartersawn maple neck and Ebony fingerboard
- Killswitch
- EVH Gig Bag included
- Series: Wolfgang® Striped
- Orientation: Right-Hand
- Color: Ivory
- Country of Origin: Mexico

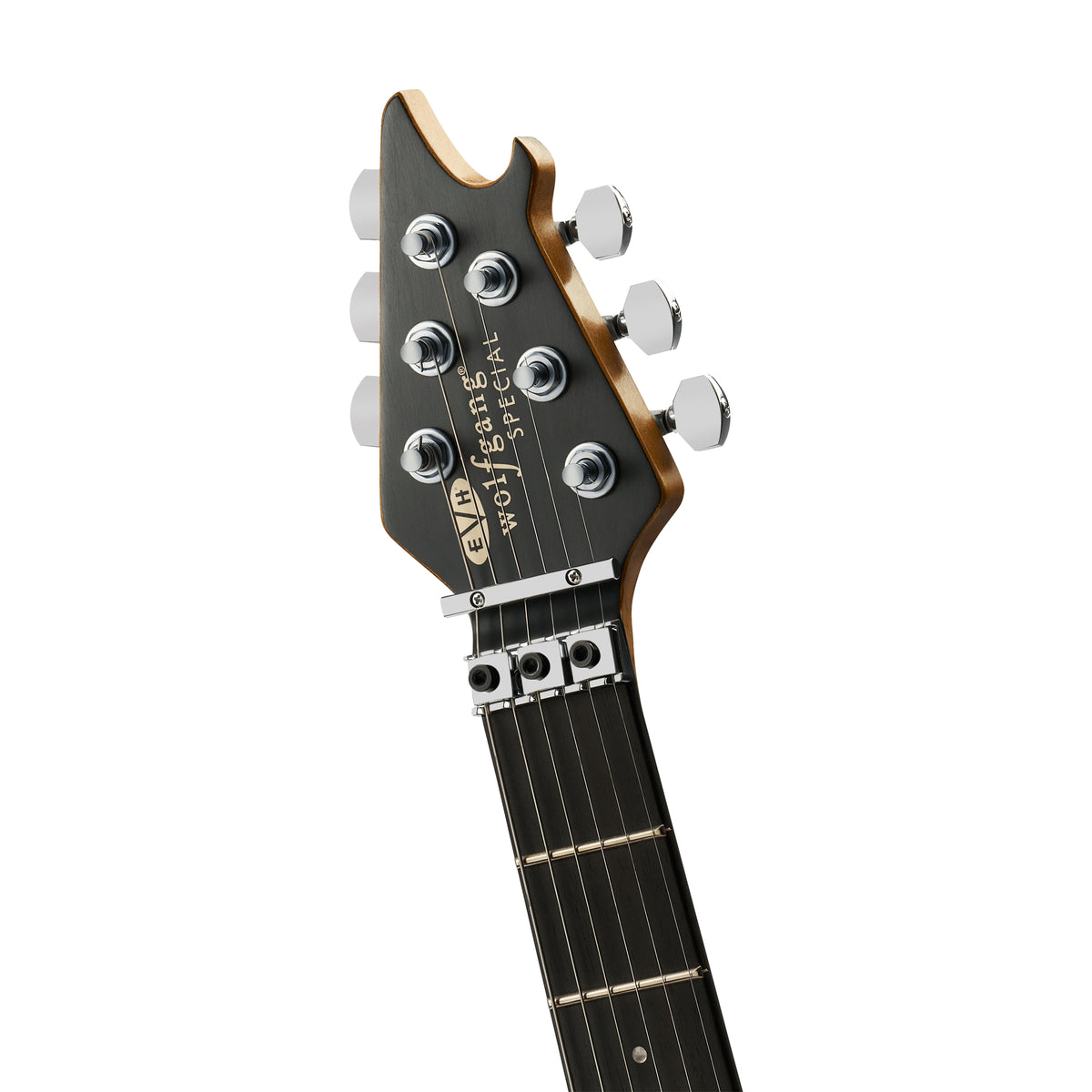

- Headstock: EVH® Wolfgang®
- Neck Material: Quartersawn Maple
- Neck Finish: Hand-Rubbed Satin Urethane
- Neck Shape: Wolfgang® Backshape
- Neck Construction: Bolt-On with Graphite Reinforcement
- Neck Thickness: 0.805" at 3rd Fret | 0.890" at 12th Fret
- Fingerboard Radius: 12" to 16" Compound Radius (304.8 mm to 406.4 mm)
- Fingerboard Material: Ebony
- Position Inlays: White Pearloid Dot
- Side Dots: Pearloid
- Number of Frets: 22
- Truss Rod: EVH®-Branded with Wheel
- Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
- String Nut: Floyd Rose® R2 Locking
- Nut Width: 1.625" (41.3 mm)
- Nut Material: Floyd Rose® R2 Locking
- Fret Size: Jumbo
- Scale Length: 25.5" (648 mm)
- Body: Basswood
- Body Finish: Satin Lacquer
- Body Shape: Wolfgang®
- Body Material: Basswood
- Bridge: EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
- Bridge Mounting: 2-Point Modern
- Tremolo Block: Brass
- Pickup Covers: Black
- Control Knobs: Black Knurled with White Indicator
- Hardware Finish: Chrome

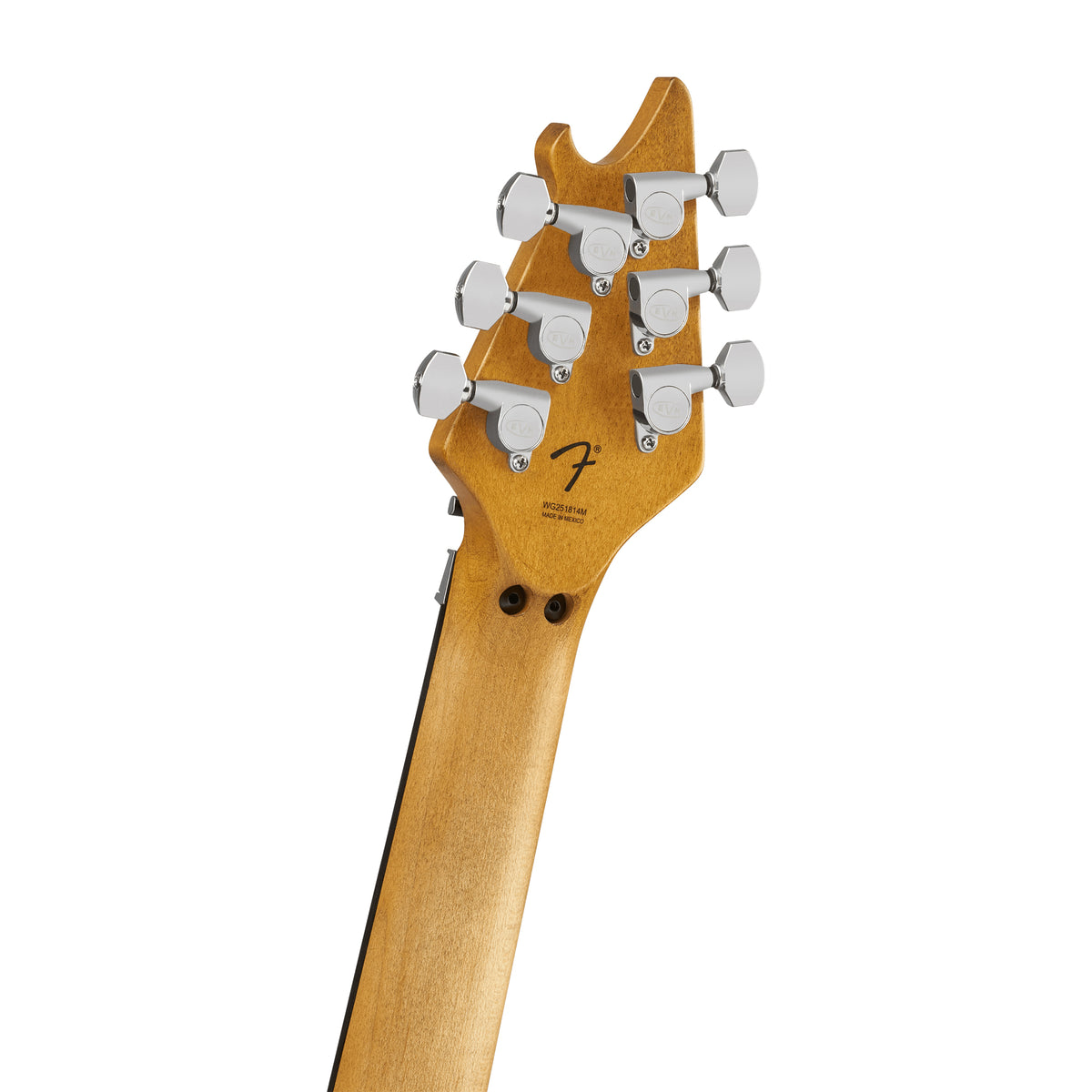

- Tuning Machines: EVH®-Branded Gotoh®
- String Trees: Floyd Rose® Retainer Bar
- Strings: EVH® Nickel-Plated Steel (0.009 - 0.042 Gauges)
- Tremolo Arm: Floyd Rose® 1000 Series Locking
- Strap Buttons: Oversized
- Bridge Pickup: Direct Mount EVH® Wolfgang® Humbucking
- Neck Pickup: Direct Mount EVH® Wolfgang® Humbucking
- Pickup Configuration: HH
- Controls: Volume (500K EVH® Bourns® Low-Friction Pot) with Treble Bleed Circuit | Tone (250K EVH® Bourns® High-Friction Pot)
- Switching; 3-Position Toggle: Position 1. Bridge Pickup | Position 2. Bridge and Neck Pickups | Position 3. Neck Pickup
- Shipping Dimensions: 5.00" x 15.00" x 42.00"
- Shipping Weight: 11.00 lb
- Truss Rod Wrench: 2.5 mm Hex
