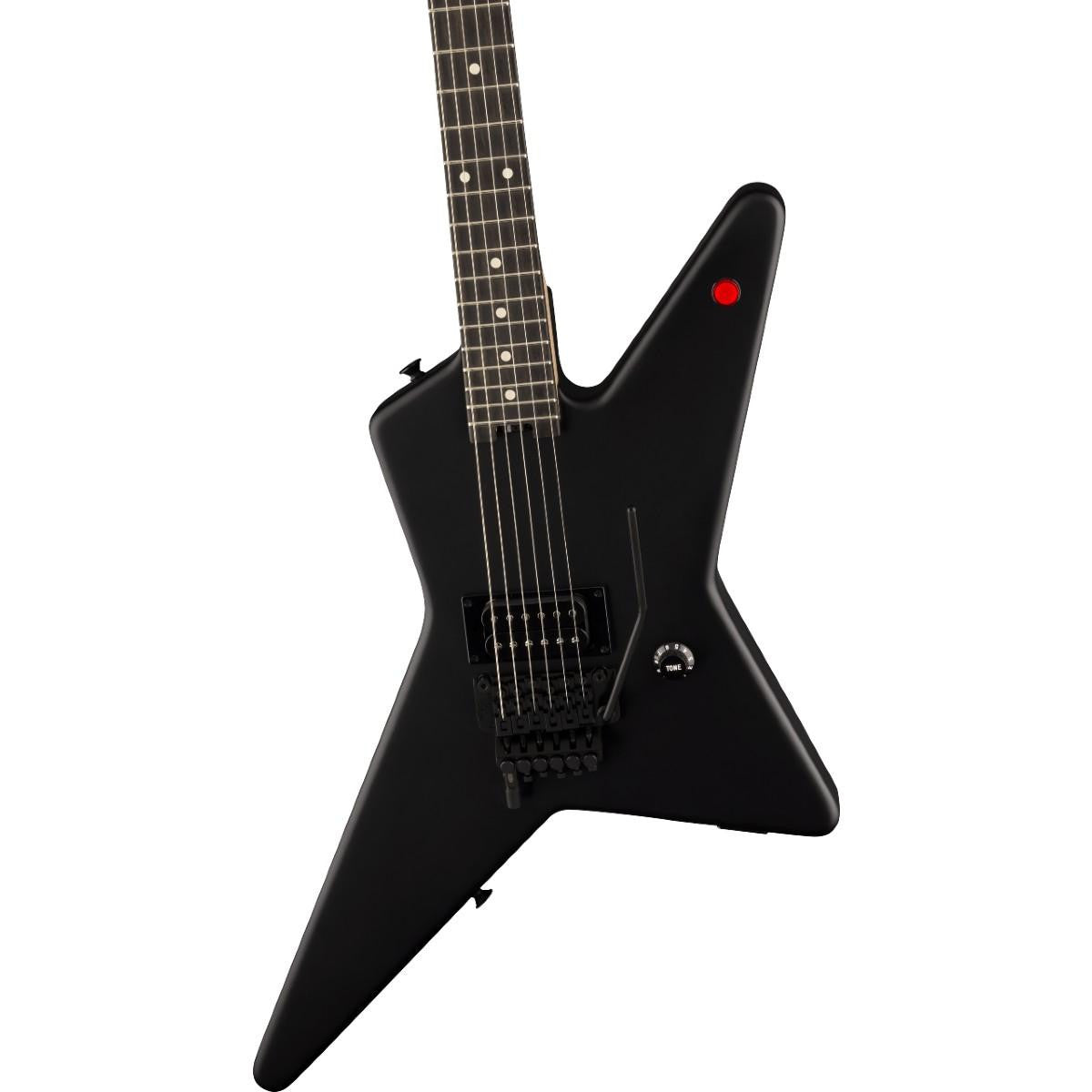

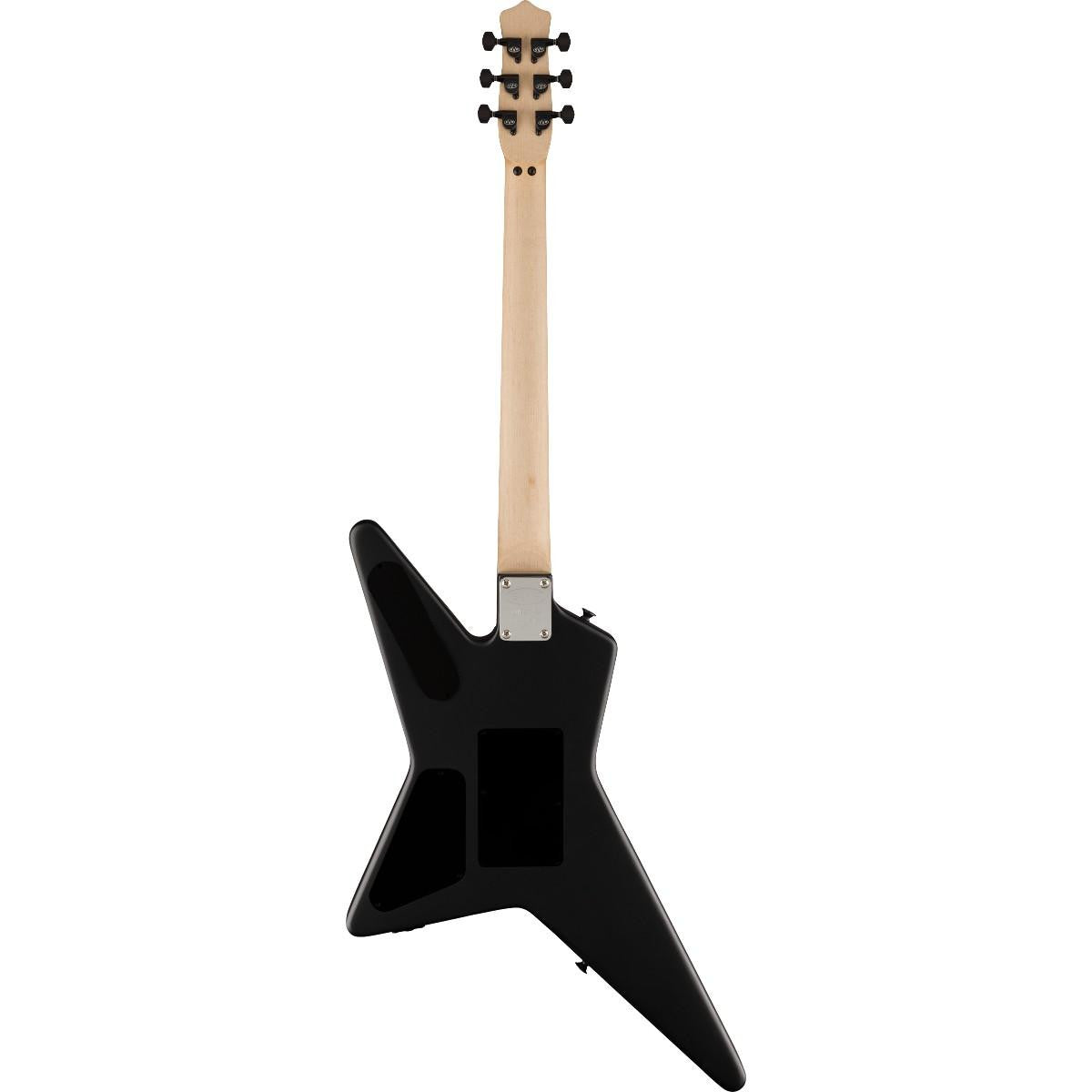

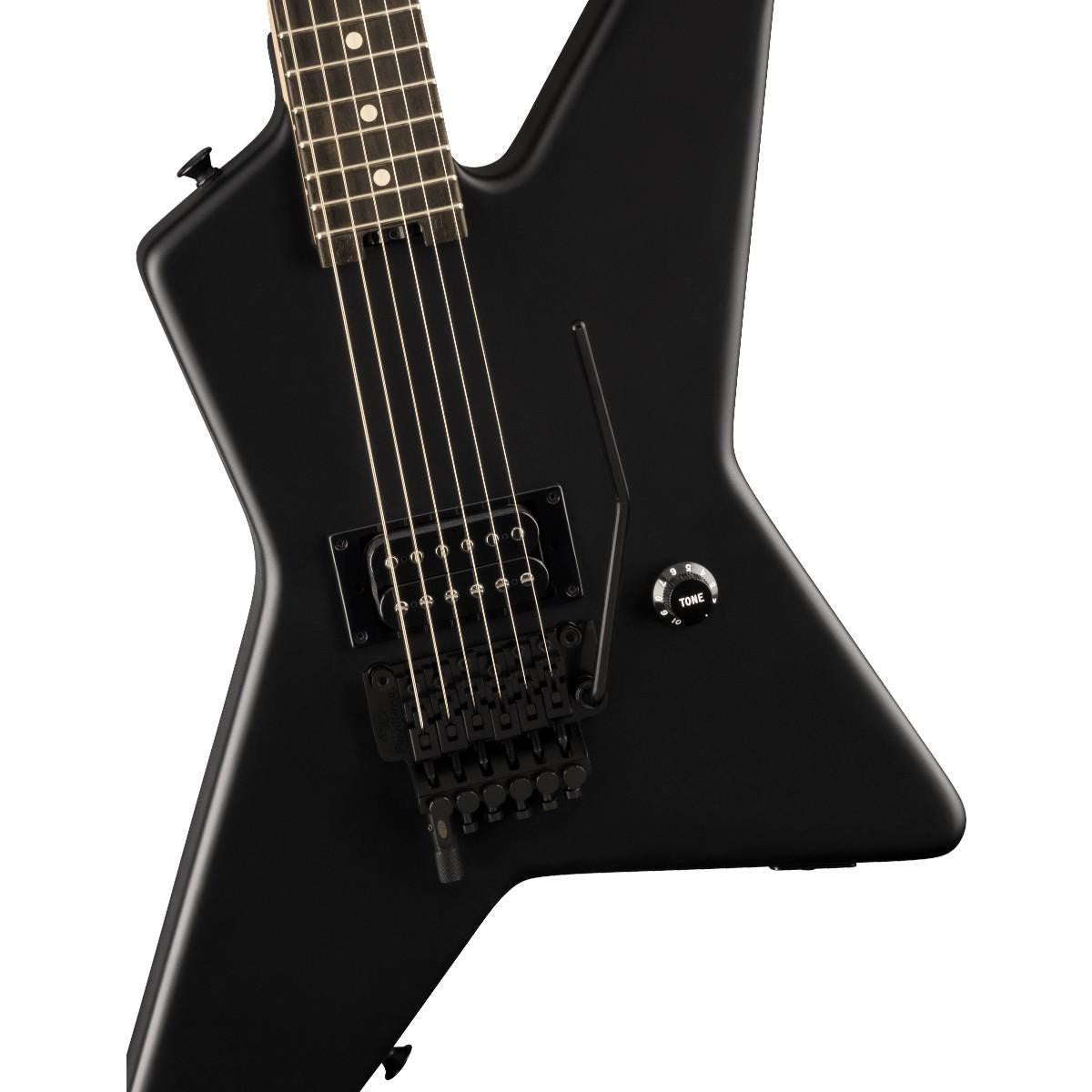

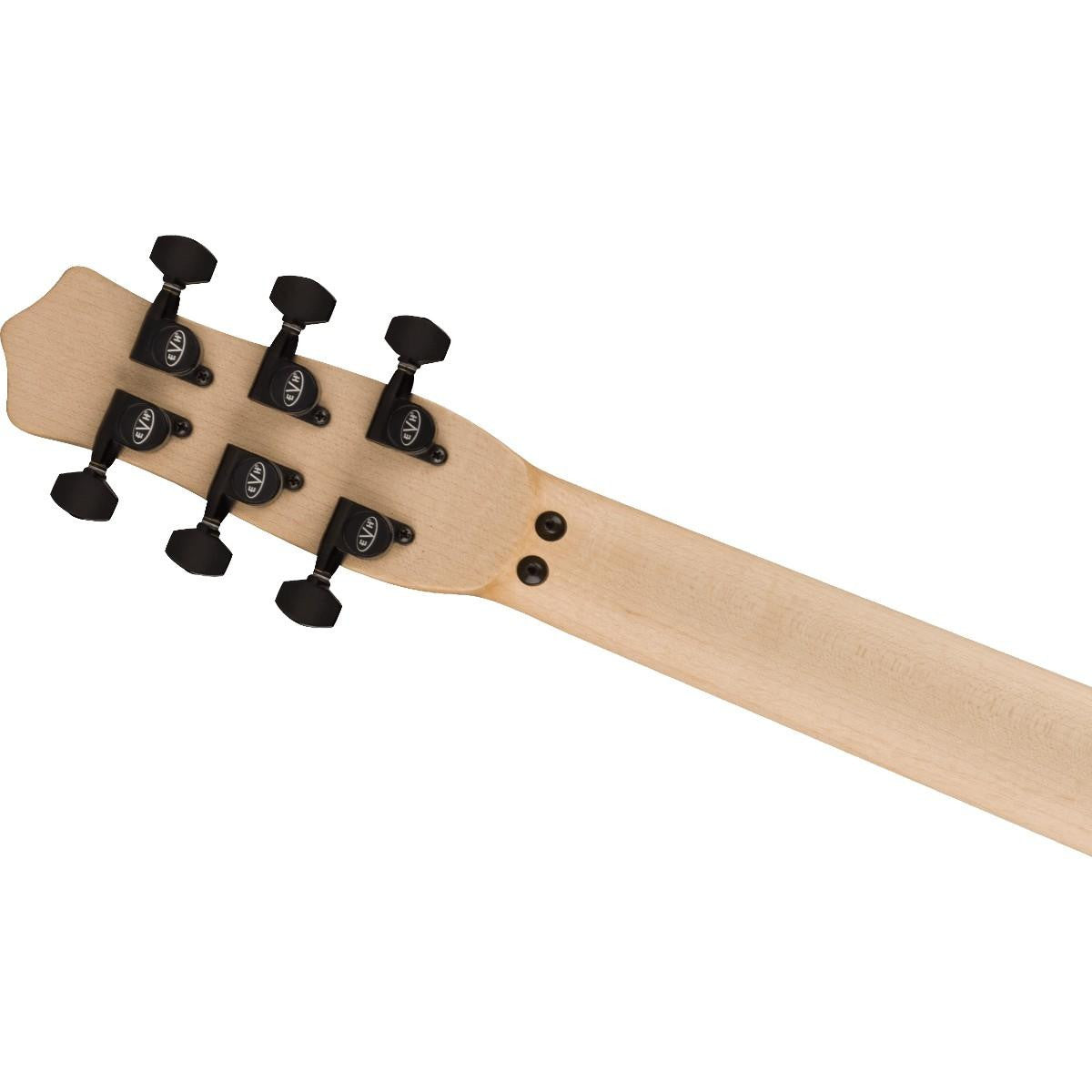

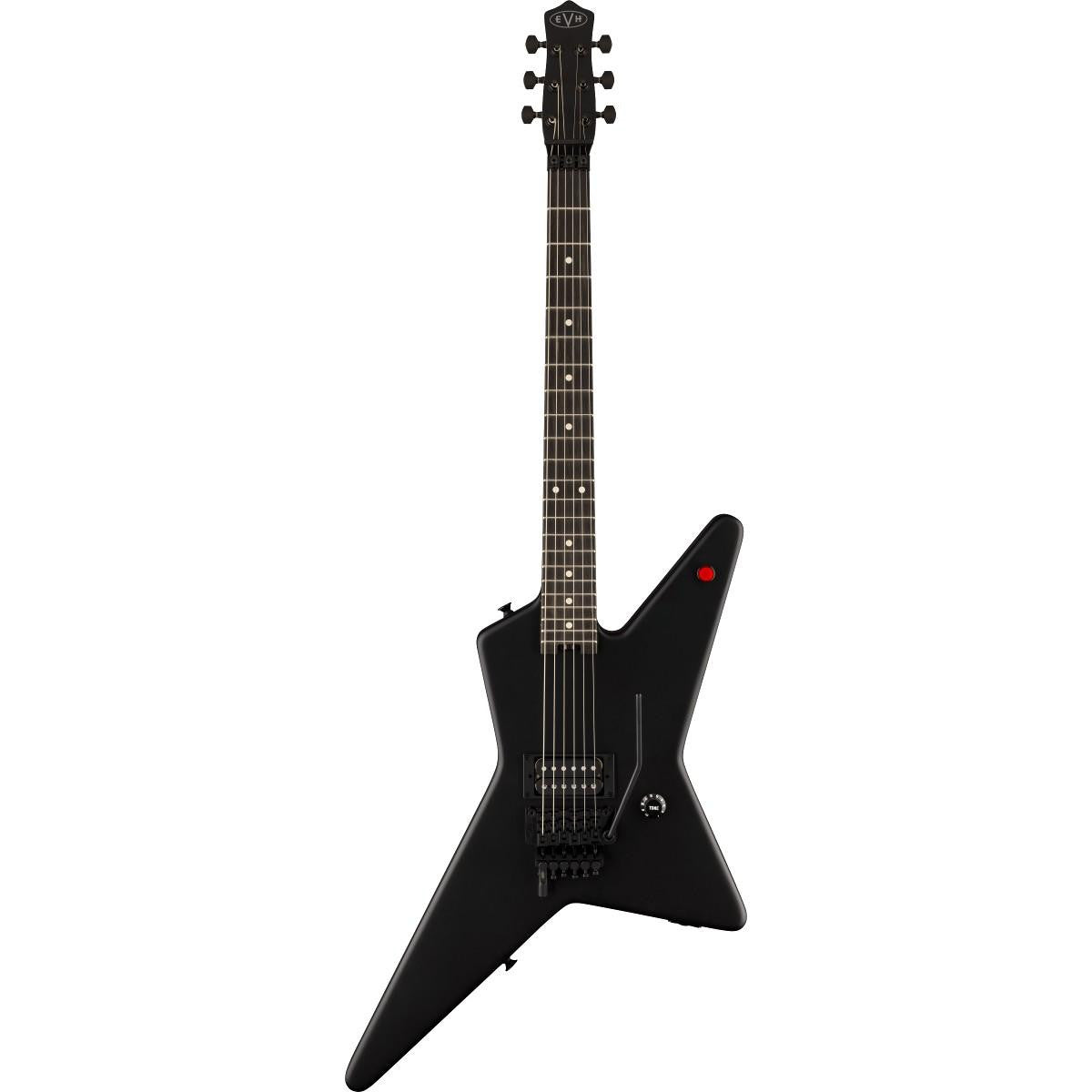

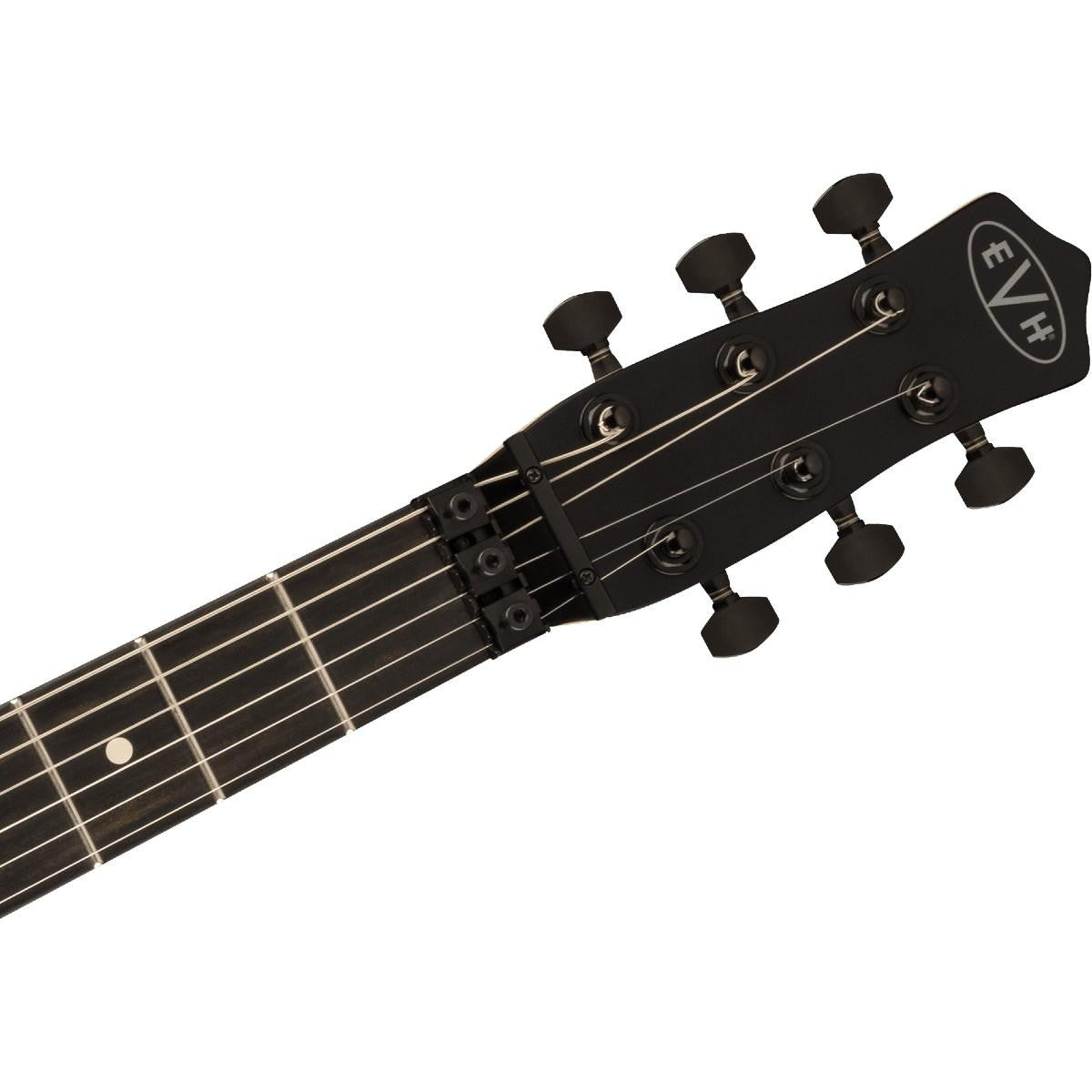

The limited edition EVH Star is a modern interpretation of (although not quite a re-creation of) one of the guitars that Eddie Van Halen used to attain the early Van Halen sound. Experience resonant tone, sustain, and crunch thanks to a basswood body and single EVH Wolfgang humbucker. Fire off cool stutter effects with the momentary kill switch. Outfitted with a comfortable maple neck and fast-playing ebony compound-radius fingerboard, blasting our pummeling riffs or lightning licks has never been easier. Beyond that, a top-mounted Floyd Rose tremolo with D Tuna yields massive sustain, also allowing you to dive bomb and shift to a Drop D tuning on the fly. The EVH Ltd Ed Star is teeming with classic Van Halen vibe, but most importantly, it provides killer tone and lightning-fast playability.
Hardware
BRIDGE: EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
BRIDGE MOUNTING: 2-Point Modern
TREMOLO BLOCK: Brass
PICKUP COVERS: Black
CONTROL KNOBS: Black Knurled with White Indicator
HARDWARE FINISH: Black
TUNING MACHINES: EVH®-Branded Gotoh®
STRING TREES: Floyd Rose® Retainer Bar
STRINGS: EVH® Nickel Plated Steel (.009-.042 Gauges)
TREMOLO ARM: Floyd Rose® 1000 Series Locking
STRAP BUTTONS: Oversized
Neck
HEADSTOCK: EVH
NECK MATERIAL: 1-Piece Bolt-On Quartersawn Maple
NECK FINISH: Hand-Rubbed Satin Urethane
NECK SHAPE: EVH® Modified "C" Backshape
NECK CONSTRUCTION: 4-Bolt
FINGERBOARD RADIUS: 12" to 16" Compound Radius (304.8 mm to 406.4 mm)
FINGERBOARD MATERIAL: Ebony
POSITION INLAYS: Cream Dot
SIDE DOTS: Cream
NUMBER OF FRETS: 22
TRUSS ROD: Dual-Action with Wheel
TRUSS ROD NUT: Heel-Mounted Spoke Wheel Adjustment
STRING NUT: Floyd Rose® R3 Locking
NUT WIDTH: 1.69" (43 mm)
NUT MATERIAL: Floyd Rose® R3 Locking
Electronics
BRIDGE PICKUP: EVH® Wolfgang® Humbucking
PICKUP CONFIGURATION: H
CONTROLS: Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit
SWITCHING: None
AUXILIARY SWITCHING: Kill Switch
POTENTIOMETERS: 500k Low Friction EVH/Bourns
Body
BODY: Basswood
BODY FINISH: Matte
BODY SHAPE: Star
BODY MATERIAL: Basswood
Hardware
BRIDGE: EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
BRIDGE MOUNTING: 2-Point Modern
TREMOLO BLOCK: Brass
PICKUP COVERS: Black
CONTROL KNOBS: Black Knurled with White Indicator
HARDWARE FINISH: Black
TUNING MACHINES: EVH®-Branded Gotoh®
STRING TREES: Floyd Rose® Retainer Bar
STRINGS: EVH® Nickel Plated Steel (.009-.042 Gauges)
TREMOLO ARM: Floyd Rose® 1000 Series Locking
STRAP BUTTONS: Oversized
Neck
HEADSTOCK: EVH
NECK MATERIAL: 1-Piece Bolt-On Quartersawn Maple
NECK FINISH: Hand-Rubbed Satin Urethane
NECK SHAPE: EVH® Modified "C" Backshape
NECK CONSTRUCTION: 4-Bolt
FINGERBOARD RADIUS: 12" to 16" Compound Radius (304.8 mm to 406.4 mm)
FINGERBOARD MATERIAL: Ebony
POSITION INLAYS: Cream Dot
SIDE DOTS: Cream
NUMBER OF FRETS: 22
TRUSS ROD: Dual-Action with Wheel
TRUSS ROD NUT: Heel-Mounted Spoke Wheel Adjustment
STRING NUT: Floyd Rose® R3 Locking
NUT WIDTH: 1.69" (43 mm)
NUT MATERIAL: Floyd Rose® R3 Locking
Electronics
BRIDGE PICKUP: EVH® Wolfgang® Humbucking
PICKUP CONFIGURATION: H
CONTROLS: Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit
SWITCHING: None
AUXILIARY SWITCHING: Kill Switch
POTENTIOMETERS: 500k Low Friction EVH/Bourns
Body
BODY: Basswood
BODY FINISH: Matte
BODY SHAPE: Star
BODY MATERIAL: Basswood
