With its smaller size and portability, the EVH® 5150III® 50W 6L6 Head is the perfect amp for players who want arena volume and performance in a more compact package. Three channels of road- tested sound work for any playing style—crisp cleans, raw crunch or searing leads, while newly added independent dual-concentric controls allow for gain and volume level matching.
This 2.0 version of our popular 50-watt head delivers a full-spectrum of tone — channel one powers crystal-clear clean tone, channel two ranges from chunky overdrive to tight distortion, and channel three oozes with liquid gain. Channels one and two each have dual concentric gain/volume controls, with shared EQ (low, mid, high). Channel three has its own gain, volume and EQ (low, mid, high) controls. All three channels also have global presence and global resonance controls.
This amp head also includes selectable impedance (4, 8 or 16 ohms), dual parallel speaker output jacks, effects loop, headphone jack, line out and a four-button footswitch with 1/4” input jack and MIDI input.
Loaded with pure EVH sound and power, the EVH 5150III 50W 6L6 Head is wrapped in Black or Ivory textured vinyl and features our instantly recognizable black EVH-striped steel grille.
A high- quality fitted cover is available as an EVH Accessory.

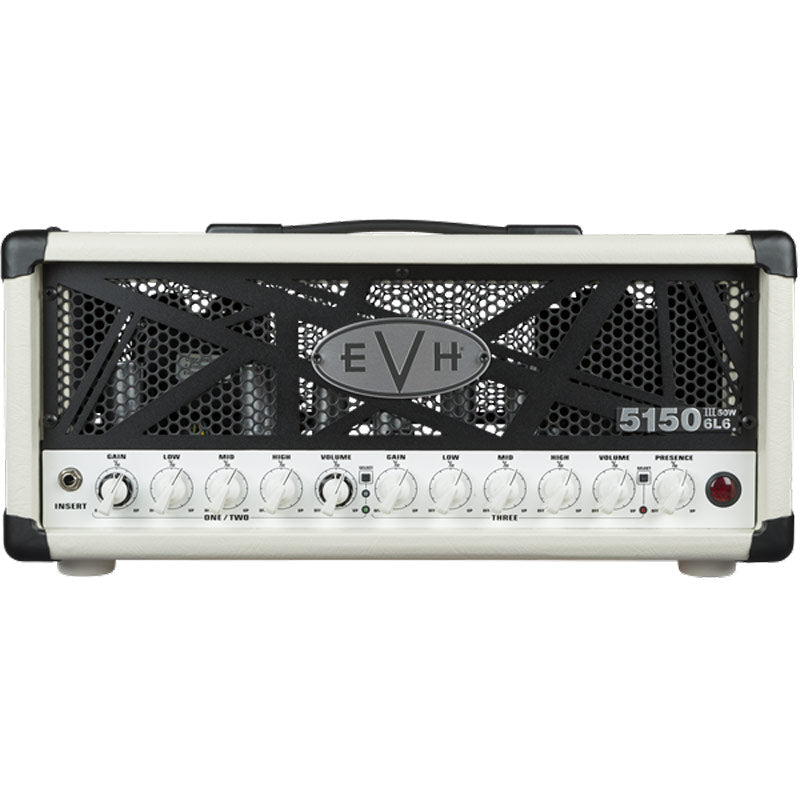

Product Name: 5150III 50W 6L6 Head - Ivory
Model #: 2253010410
General
Amplifier Type: Tube
Color: Ivory
Country Of Origin: MX
Series: EVH® 5150III® Heads
Electronics
Channels: Three - (Clean, Crunch and Lead)
Connection Type: 1/4"
Control Panel: Channel 1: Independent Gain and Volume w/ Shared Low, Mid and High; Channel 2: Independent Gain and Volume w/ Shared Low, Mid and High; Channel 3: Independent Gain, Volume, Low, Mid and High EQ; Also Global Presence and Resonance
Controls: Channel 1: Independent Gain and Volume w/ Shared Low, Mid and High; Channel 2: Independent Gain and Volume w/ Shared Low, Mid and High; Channel 3: Independent Gain, Volume, Low, Mid and High EQ; Also Global Presence and Resonance
Effects Loop: 1/4" (Send/Return)
Headphone Jack: 1/4" Stereo
Inputs: One - 1/4", MIDI (rear)
Line Out: One - 1/4"
Voltage: 120V (Also Available in 100V, 110V, 220V, 230V, 240V)
Wattage: 50 Watts
Hardware
Amplifier Covering: Ivory Textured Vinyl
Cabinet Material: White Birch
Control Knobs: White Chicken-Head Style Pointer
Front Panel: White
Grille Cloth: Perforated Steel Front and Rear Panel
Handle: Molded Plastic Strap with Nickel-Plated Caps
Speaker Jack: Two - 1/4" Parallel
Speakers
Total Impedance: 4, 8, or 16 ohms
Tubes
Power Tubes: 2 x JJ 6L6
Preamp Tubes: 7 x JJ ECC83S (12AX7)
Rectifier: Solid State
Accessories
Footswitch: 4-Button Footswitch Included
Included Accessories: 5-Foot Speaker Cable
Measurements
Dimensions: 16.00x17.00x28.00 IN
Power Tubes: 2 x JJ 6L6
Product Depth: 12" (30.5 cm)
Product Height: 8.5" (21.6 cm)
Product Width: 20" (50.8 cm)
Shipping Height: 16.00 IN
Shipping Length: 28.00 IN
Shipping Weight: 44.85 LB
Shipping Width: 17.00 IN
