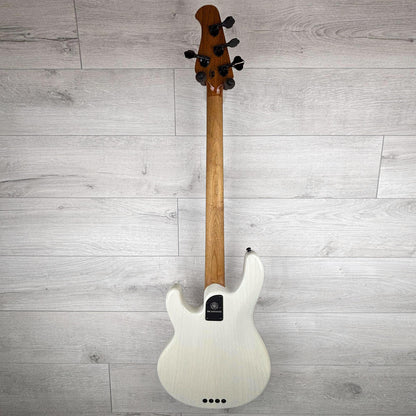

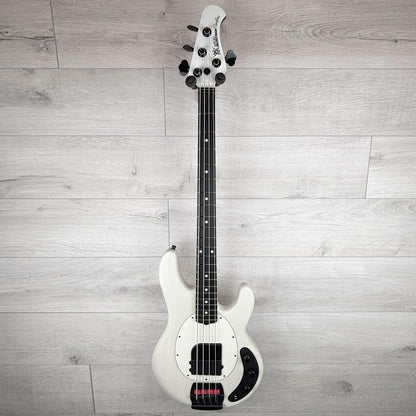

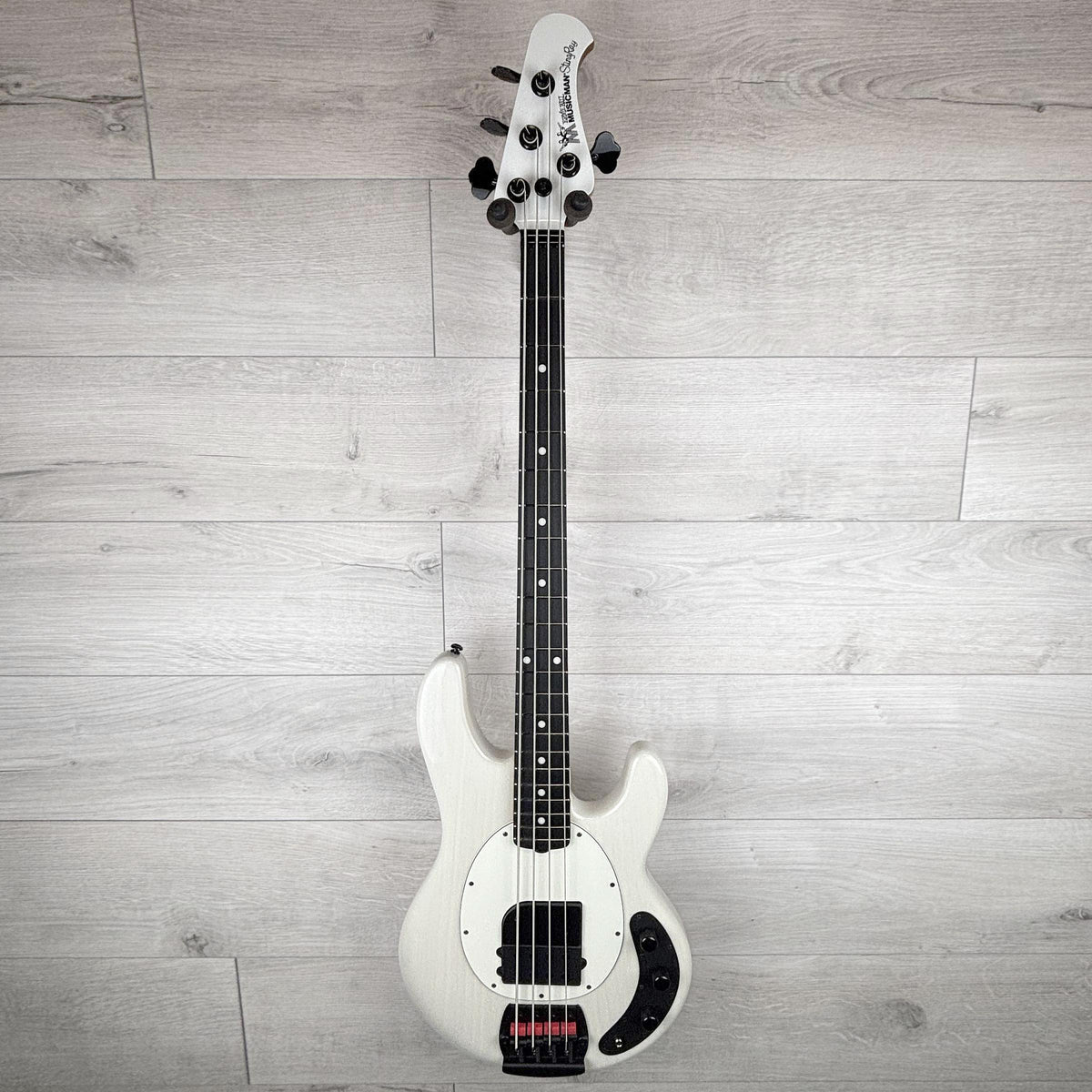

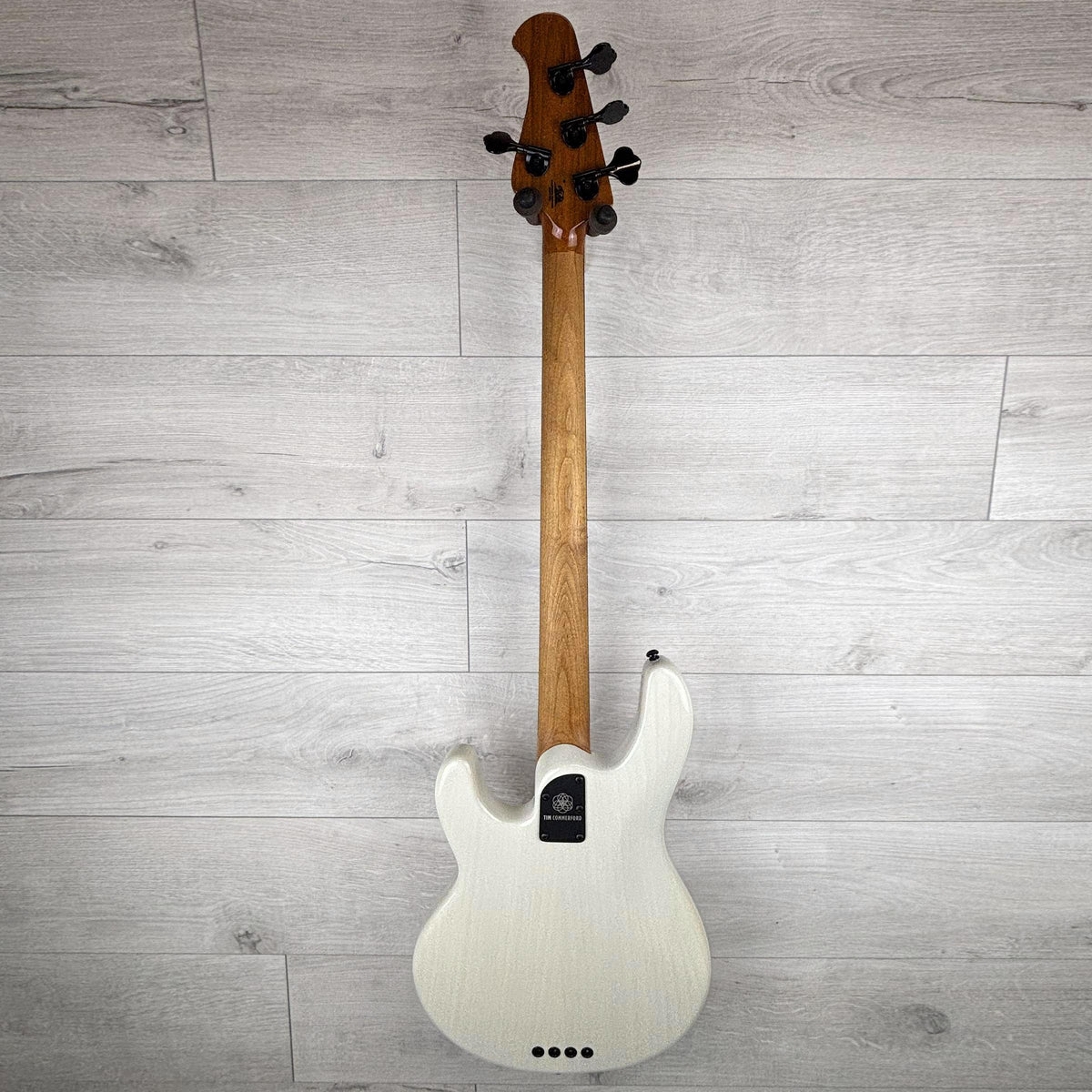

Created in close partnership with iconic bassist Tim Commerford—known for his work with Rage Against the Machine, Audioslave, and 7D7D—the Artist Series StingRay Bass is a bold tribute to his powerful playing and long-standing relationship with Ernie Ball Music Man. Each model features a unique numbered neck plate and is built with a resonant ash body, roasted maple neck, and a sleek ebony fingerboard for a dynamic, well-balanced sound. A high-output neodymium humbucker pairs with an 18-volt preamp and 3-band EQ, delivering a wide tonal range that adapts easily to aggressive riffs or smooth grooves. The string-through-body bridge, complete with an integrated mute kit, ensures enhanced sustain and precise articulation. Finished with black hardware and a custom adjustable “finger ramp” thumb rest inspired by Commerford’s technique.
Model: Tim Commerford Passive Full-Scale
Size: 13-1/2" wide, 1-5/8" thick, 44-7/8" long (34.3 cm wide, 4.1 cm thick, 114.0 cm long)
BodyWood: Ash
BodyFinish: Matte Polyester
Bridge: Music Man® Black, Strings-Thru-the-Body with Hardened Steel Plate, Vintage Steel Saddles, Red Adjustable Mute Pads
Pickguard: Parchment
ScaleLength: 34" (86.4 cm)
NeckRadius: 11" (27.9 cm)
HeadstockSize: 8-3/4" (22.2 cm)
Frets: 22 High Profile, Wide, Stainless Steel
NeckWidth: 1-11/16" (42.9 mm) at Nut, 2-1/2" (63.5 mm) at Last Fret
NeckWood: Select Roasted Maple
Fingerboard: Ebony
FretMarkers: 5/16" Dot Inlay
NeckFinish: Gunstock Oil and Hand-Rubbed Special Wax Blend
NeckColors: Matching Headstock
TuningMachines: Custom Music Man, Lightweight with Tapered String Posts and Ergonomic Clover Design
TrussRod: Adjustable (No Component or String Removal Required)
NeckAttachment: 5-Bolt Sculpted Neck Joint
ElectronicShielding: Black Plated Aluminum Control Cover
Controls: Passive 500kΩ Push/Push Volume Pot (Gain Boost), 100kΩ Tone Pot with 0.1µF Tone Cap
Pickups: Single Humbucking with Neodymium Magnets
Strings: 50w-70w-85w-105w (Regular Slinky Bass #2832)
