This pedal provides a huge, responsive range of gritty and textured tones that enhance the sound of your rig while preserving its fundamental character - and in an MXR mini housing, this pedal will free up some serious pedalboard space.
This pedal can be powered by a Dunlop ECB003 9-volt adapter, or the DC Brick, Iso-Brick, and Mini Iso-Brick power supplies (not included).

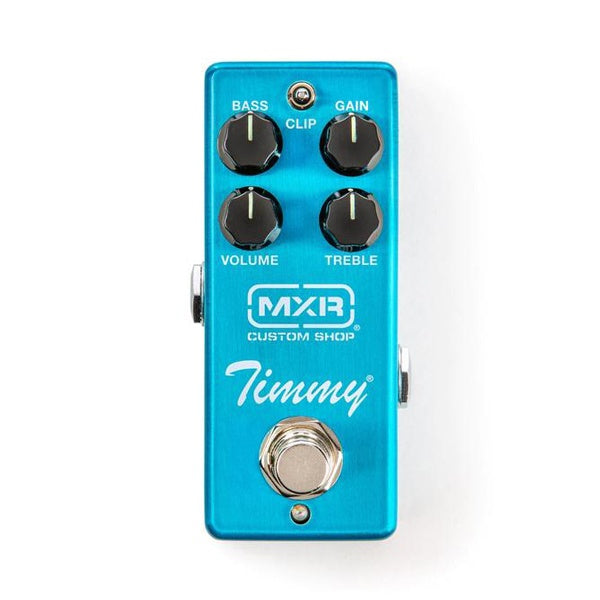

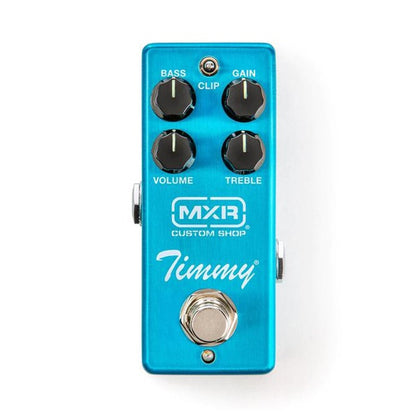

Controls
• FOOTSWITCH toggles effect on/bypass (blue LED indicates on)
• VOLUME knob adjusts overall volume of effect
• BASS knob cuts low end frequencies from pre-overdrive signal
• CLIP switch sets clipping mode
• GAIN knob adjusts overdrive intensity
• TREBLE knob cuts high end frequencies from post-overdrive signal
Specifications
Input Impedance: 400 kΩ
Output Impedance: 1 kΩ
Noise Floor: -115 dBV
Gain: 3 dBV to 43 dBV
Bypass: True Hardwire
Current Draw: 2.2 mA
Power Supply: 9 volts DC
This pedal can be powered by a Dunlop ECB003 9-volt adapter, or the DC Brick, Iso-Brick, and Mini Iso-Brick power supplies (not included).
Controls
• FOOTSWITCH toggles effect on/bypass (blue LED indicates on)
• VOLUME knob adjusts overall volume of effect
• BASS knob cuts low end frequencies from pre-overdrive signal
• CLIP switch sets clipping mode
• GAIN knob adjusts overdrive intensity
• TREBLE knob cuts high end frequencies from post-overdrive signal
Specifications
Input Impedance: 400 kΩ
Output Impedance: 1 kΩ
Noise Floor: -115 dBV
Gain: 3 dBV to 43 dBV
Bypass: True Hardwire
Current Draw: 2.2 mA
Power Supply: 9 volts DC
