The art of the JCM800 2203 Vintage Reissue Head is its simplicity. Used by artists around the world, this amp continues to be one of our greatest.
Oozing rock status, you can effortlessly detect its distinctive 100W roar. Complete with a master volume and a series FX loop, the JCM800 allows you to control your sound.
Designed and engineered in UK. Made in UK.
Specifications:

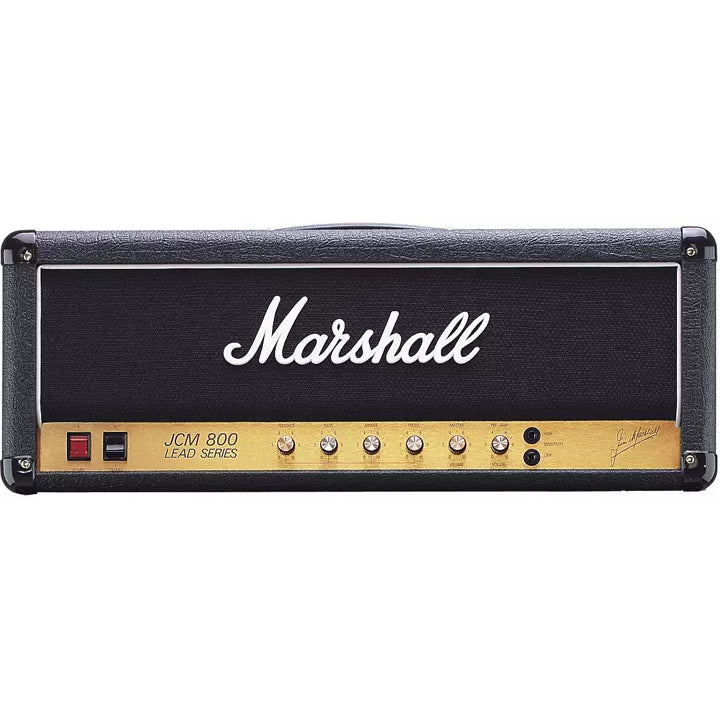

Model: JCM800 2203 Vintage Reissue Head
Series: Vintage Reissue
Technology: Valve
Channels: 1
Output Power: 100W
Inputs: 2 x 1/4" Instrument Inputs (High/Low Sensitivity)
Outputs: 2 x 1/4" Speaker Outputs (Selectable 16Ω / 8Ω / 4Ω)
Controls: Preamp Volume, Master Volume, Treble, Middle, Bass, Presence
Effects: None
Effects Loop: Yes, 1 x Serial Switchable
Preamp Valves: 2 x ECC83, 1 x ECC83 (Phase Splitter)
Power Amp Valves: 4 x EL34
Width: 740 mm / 29.1"
Height: 315 mm / 12.4"
Depth: 210 mm / 8.3"
Weight: 20.5 kg / 45 lb
Country of Origin: Designed and Engineered in UK, Made in UK
Included Accessories: Detachable Power Cable, Speaker Cable
