DESCRIPTION

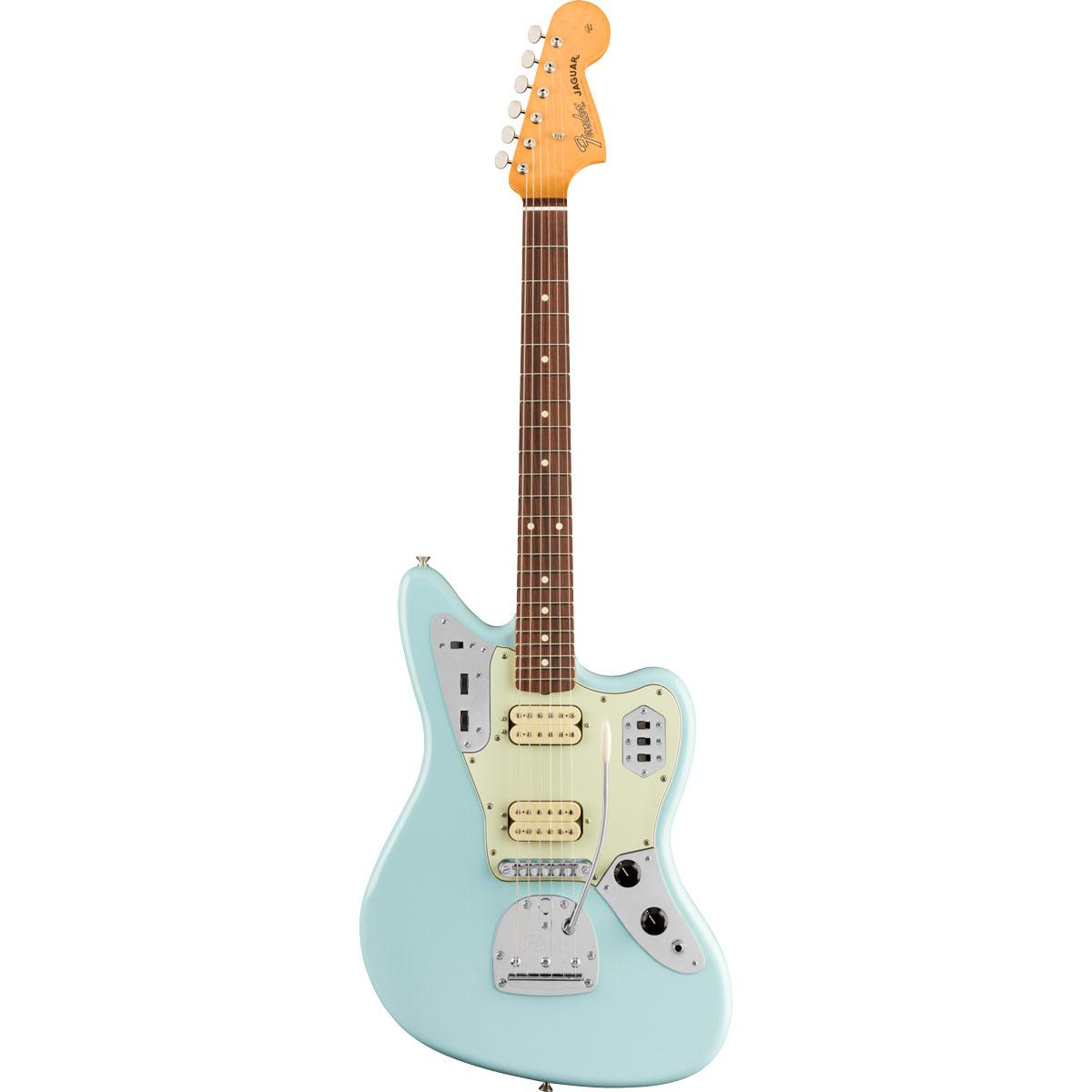

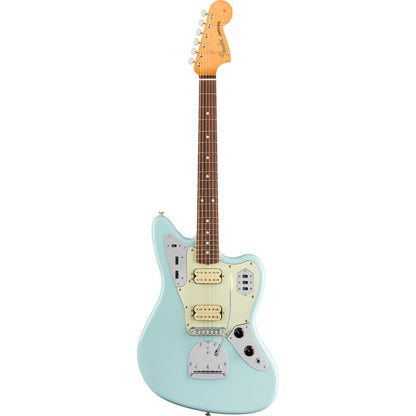

For players who appreciate the mojo of Fender’s golden era matched to contemporary features, we created the Vintera® ‘60s Jaguar® Modified. Blending classic looks with a modern neck profile and fingerboard radius, hotter pickups and updated electronics—this guitar packs a surprising amount of power under the hood.
To crank out giant-sized tone from this short-scale wonder, we loaded it up with a pair of high-output Atomic™ humbucking pickups. They have the power to easily drive a tube amp into luscious overdrive, while retaining the articulate sound that made Fender famous. The “Modern C”-shaped neck has a 9.5”-radius maple fingerboard with 22 medium-jumbo frets, for modern playing feel. An Adjusto-matic™ bridge is paired to Jaguar floating tremolo, while vintage-style tuning machines provide original-era aesthetics, rock-solid performance and tuning stability. Joining the master volume and tone controls, two sliders on the lower bout activate/deactivate each pickup while the third slider activates a “tone cut”. The wheels on the upper horn select between single-coil and humbucking modes for each pickup, giving you more tonal variety. Other features include a kill switch mounted on the upper horn, chrome hardware and four-bolt neck plate. Includes a deluxe gig bag.
FEATURES
Alder body; 24” scale length
Two Atomic humbucking pickups
“Modern C”-shaped maple neck with satin back finish; 9.5”-radius fingerboard with 22 medium-jumbo frets
Two pickup on/off slider switches; tone cut slider switch; master kill switch; rotary controls to dial single-coil or humbucking modes
Includes deluxe gig bag
MODEL #: 0149813372
General
SERIES: Vintera®
ORIENTATION: Right-Hand
COLOR: Sonic Blue
COUNTRY OF ORIGIN: MX
Neck
NECK MATERIAL: Maple
NECK FINISH: Satin Urethane with Gloss Urethane Headstock Face
NECK SHAPE: Modern "C"
NECK CONSTRUCTION: 4-Bolt
FINGERBOARD RADIUS: 9.5" (241 mm)
FINGERBOARD MATERIAL: Pau Ferro
POSITION INLAYS: White Dot
NUMBER OF FRETS: 22
TRUSS ROD: Vintage-Style
STRING NUT: Synthetic Bone
NUT WIDTH: 1.650" (42 mm)
NUT MATERIAL: Synthetic Bone
Body
BODY: Alder
BODY FINISH: Gloss Polyester
BODY SHAPE: Jaguar®
BODY BINDING: None
BODY STYLE: Solid Body
BODY MATERIAL: Alder
Hardware
BRIDGE: Adjusto-Matic™ Bridge with Vintage Style "Floating" Tremolo Tailpiece
PICKGUARD: 3-Ply Mint Green
PICKUP COVERS: Aged White
CONTROL KNOBS: Vintage-Style Black Plastic Jazz Bass®
HARDWARE FINISH: Nickel/Chrome
TUNING MACHINES: Vintage-Style
STRINGS: Fender® USA 250L Nickel Plated Steel (.009-.042 Gauges), PN 0730250403
NECK PLATE: 4-Bolt
STRAP BUTTONS: Vintage-Style
Electronics
BRIDGE PICKUP: Atomic™ Humbucking
NECK PICKUP: Atomic™ Humbucking
PICKUP CONFIGURATION: HH
CONTROLS: Master Volume, Master Tone; Two Thumbwheel Controls blend between humbucker and single-coil operation, Kill-Switch (upper slider switch), Bridge and Neck ON/OFF (lower slider switches), Choke Switch
SWITCHING: Neck Pickup On/Off Slide Switch, Bridge Pickup On/Off Slide Switch, Normal/Low Cut Slide Switch
Measurements
DIMENSIONS: 4.50x15.20x42.20 IN
SHIPPING WEIGHT: 12.85 LB
FRET SIZE: Medium Jumbo
SCALE LENGTH: 24" (610 mm)
SHIPPING LENGTH: 42.20 IN
SHIPPING HEIGHT: 4.50 IN
SHIPPING WIDTH: 15.20 IN
Accessories
RECOMMENDED CASE: Classic Series Jazzmaster®/Jaguar® Wood Hardshell Case, P/N 0996116306 (Not Included)
