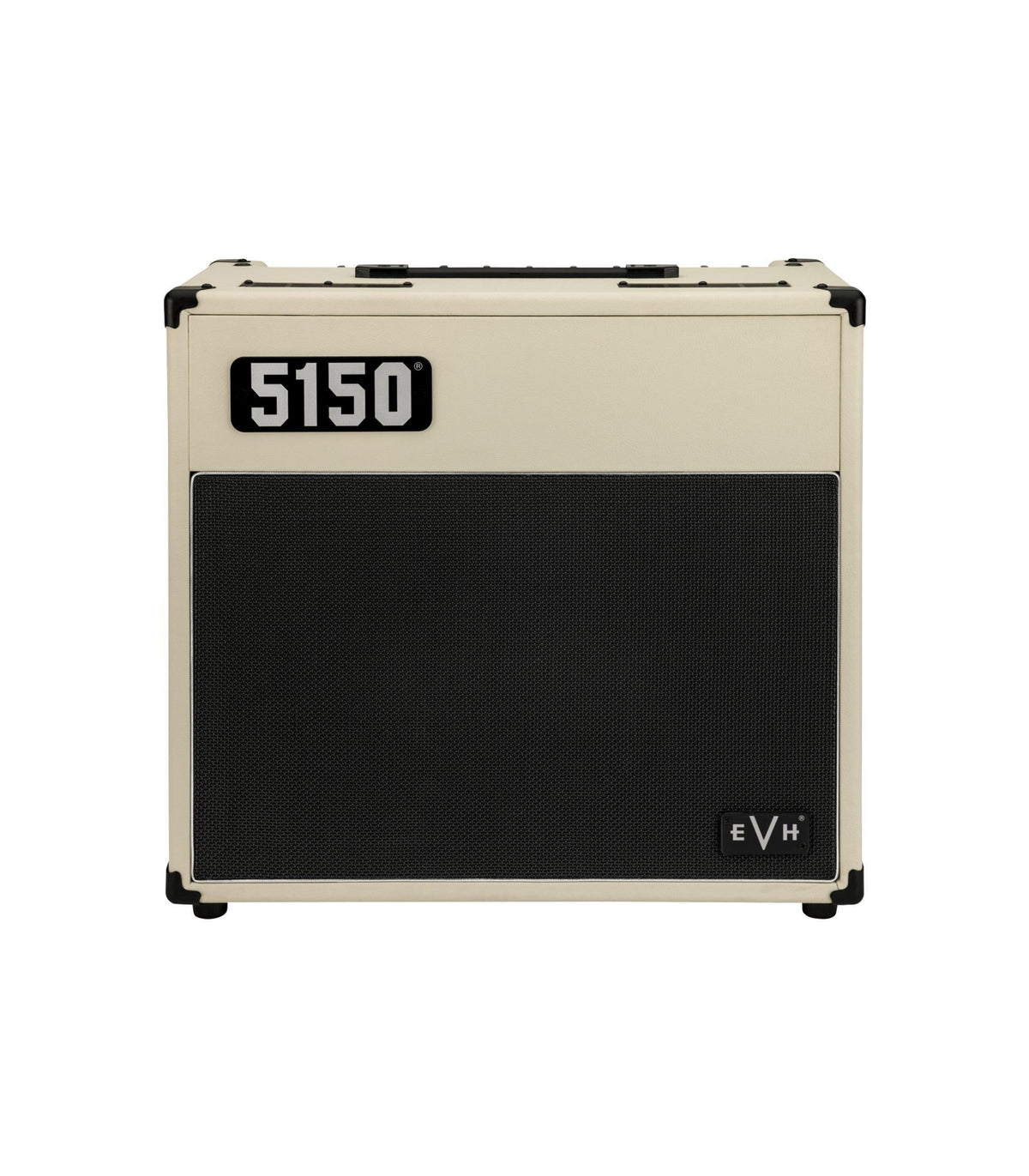

The EVH® 5150® Iconic® Series satisfies the needs of gigging and recording guitarists craving that powerful EVH tube tone at a more affordable price. Evolving from the revered and flagship EVH 5150III® amplifiers, the Iconic amplifiers deliver the searing sound and growling gain that Eddie Van Halen made famous.
Collaboratively designed by the EVH team and led by renowned amp engineer, James Brown, the 5150® Iconic® Series 15-watt 1x10 combo has a 6L6 power tube voiced by a complex, multi-stage hybrid preamp section anchored by a pair of ECC83 tubes, providing all the muscle you need for a modern-day practice amp. The cabinet features special internal plywood baffling for tight and increased bass response, and houses a custom-designed EVH 10" Celestion® speaker voiced specifically for this preamp circuit, so that the pristine cleans and searing high gain tones are tight, clear and articulate.
Features
• 15-watt 1x10 combo
• Two channels: Green and Red; Green channel has overdrive button to go from clean to increased gain, while the Red channel has a burn button to go from lead to burn
• Dual Gain, Shared Low, Mid, High EQ, Dual Volume, Shared Global Reverb, Resonance and Presence controls

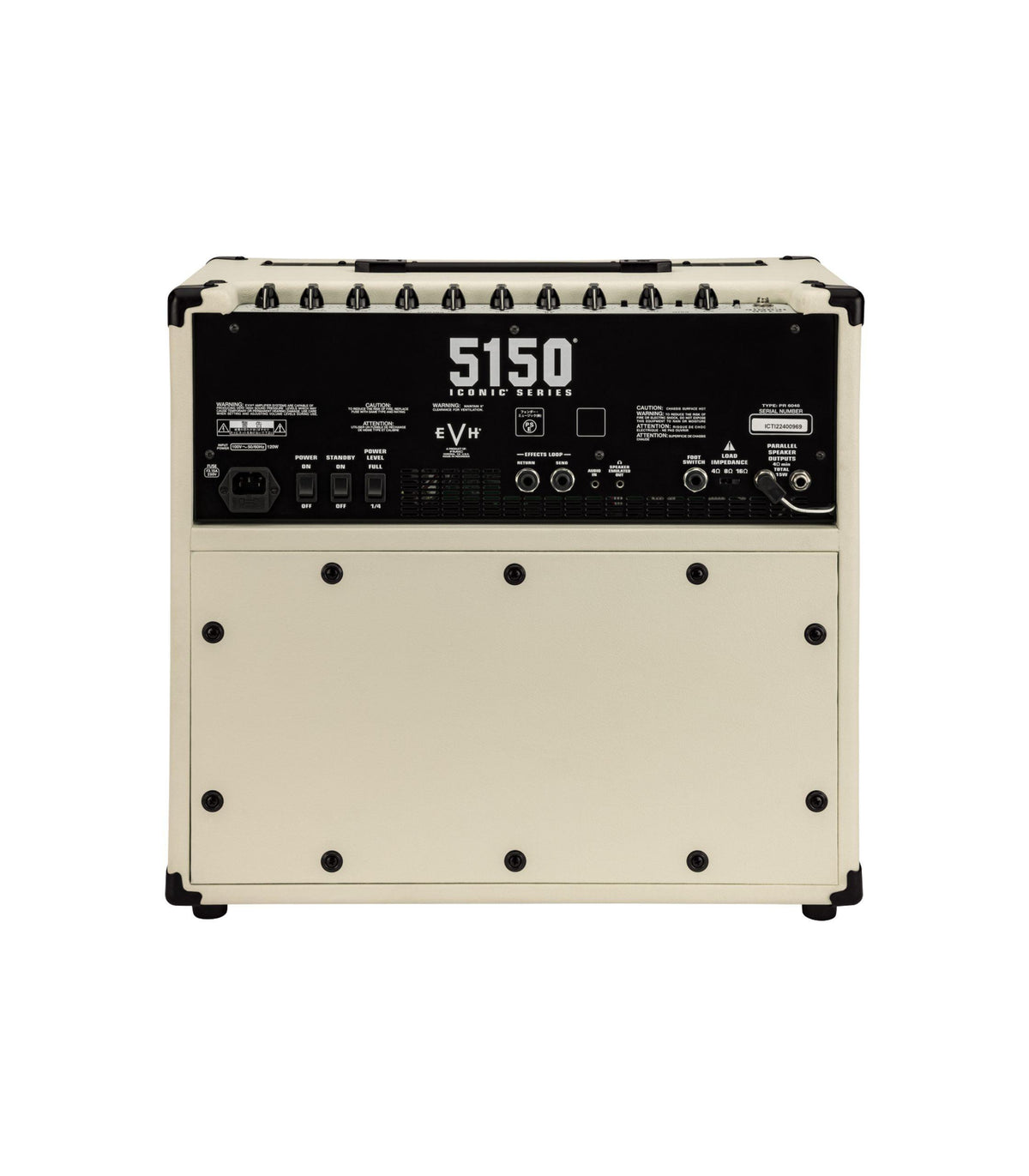

• 1/4 power level switch, standby switch and power switch located on rear panel
• Selectable impedance (4, 8 or 16 ohms)
• Two ECC83 preamp tubes and one 6L6 power tube
• One 10" EVH® Celestion® Custom speaker
• 1/8" audio in and 1/8" emulated cab headphone/recording out
• Dual parallel speaker output jacks
• Effects loop
• One-button footswitch included
• Available in Black or Ivory with black cloth front grille and silver and black 5150® and EVH® logo badges
Specs
Series: Iconic
Amplifier Type: Tube
Speaker: One - 10" EVH® Celestion® Custom
Inputs: One - 1/4"
Channels: Two - Clean/Overdrive and Lead/Burn
Controls:
Channel 1: Gain w/ Overdrive Switch; Channel 2: Gain w/ Burn Switch; Shared Low, Mid, High EQ; Channel 1/Channel 2 Volume; Global Reverb, Resonance and Presence
Effects: Reverb
Effects Loop: 1/4" (Send/Return)
Line Out: One - (1/8" Stereo)
Headphone Jack: One - (1/8" Stereo)
Speaker Jack: Two - 1/4" Parallel
Wattage: 15 Watts
Preamp Tubes: 2 - ECC83
Power Tubes: 1 - 6L6
Rectifier: Solid State
Cabinet Material: MDF w/ Plywood Baffle
Grill: Black
Amplifier Covering: Black (010) or Ivory (410) Textured Vinyl
Front Panel: Brushed Aluminum
Handle: Molded Plastic Strap with Black Powder Coated Caps
Knobs: Black Chicken-Head Style Pointer
Power Cable: IEC
Footswitch: 1-Button Footswitch Included (1/4")
Other Features: 1/4 Power Level Switch
